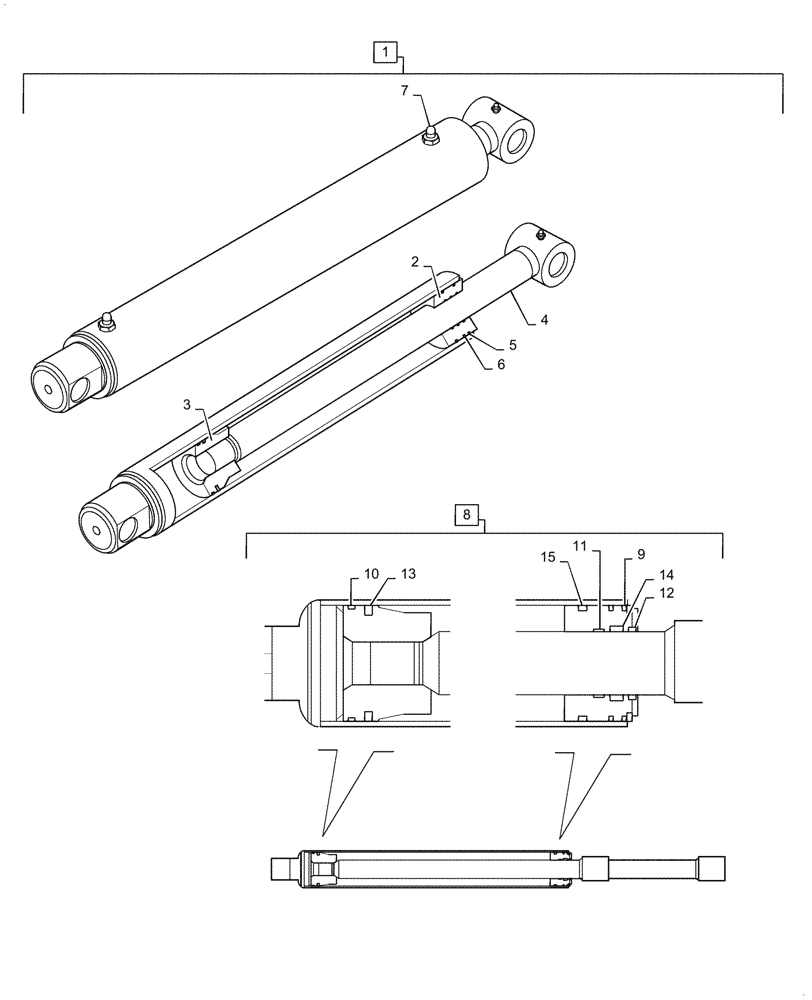

Запчасти Case IH L545 (35.723.010) - BUCKET LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

1

LDR60005794

HYDRAULIC CYLINDER

Bucket Cylinder, Incl 2 - 15

1шт.

2

LDR5017000

RING

Retaining

1шт.

3

LDR5017001

RING

Retaining

2шт.

4

LDR5028083

PLUG

1шт.

5

LDR12726213

PISTON ROD

1шт.

6

LDR12716011

BEARING

1шт.

7

LDR12706212

PISTON

1шт.

8

LDR5034114

SEAL KIT

Incl 9 - 15

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring, 3mm ID x 53mm OD, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Guide Ring, 5mm ID x 55mm OD, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Piston Seal, 4mm ID x 49mm OD, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Cover Seal, 5mm ID x 53mm OD, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Seal, 10mm ID x 43mm OD, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Guide Ring, 6mm ID x 9mm OD, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Wiper, Incl in 1

1шт.
