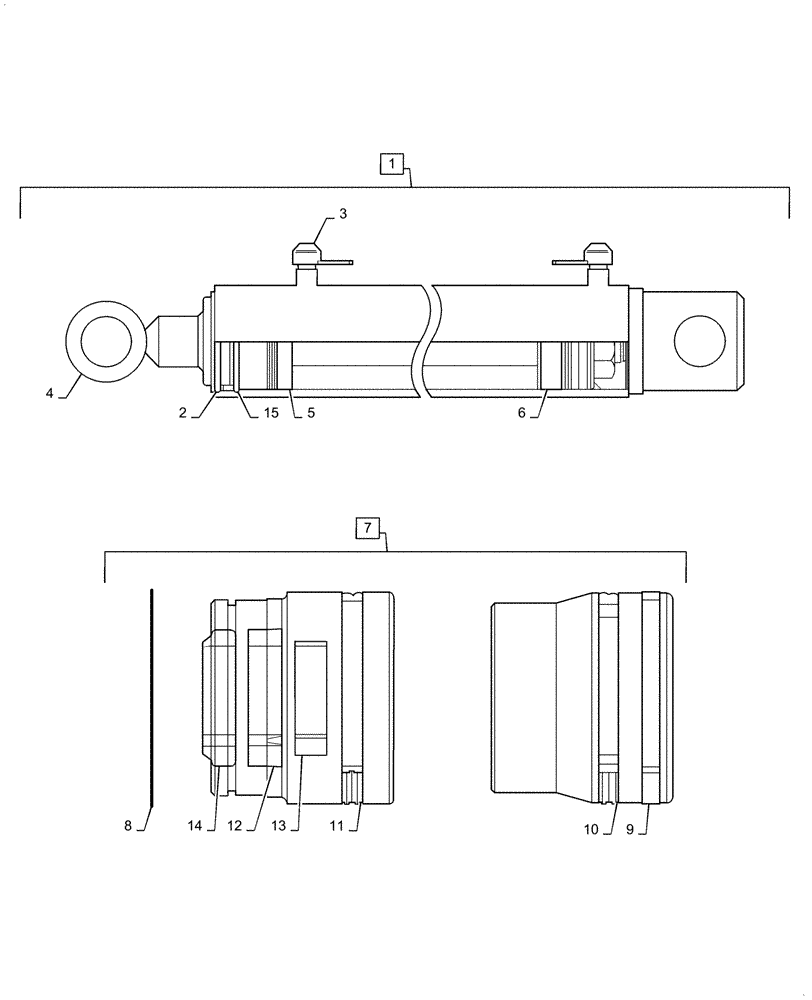

Запчасти Case IH L545 (35.701.CB[01]) - LOADER BOOM HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

1

LDR12726110

HYDRAULIC CYLINDER

Loader Boom, Incl 2 - 15

1шт.

2

LDR5017006

RING

Retaining

1шт.

3

LDR5028083

PLUG

2шт.

4

LDR12726213

PISTON ROD

Hydraulic Cylinder

1шт.

5

LDR12726611

BEARING, ROLLER, CYL

Inner

1шт.

6

LDR12710512

PISTON

Hydraulic Cylinder

1шт.

7

LDR5034273

SEAL KIT

Loader Boom Hydraulic Cylinder, Incl 8 - 14

1шт.

8

NSS

NOT SOLD SEPARAT

O - Ring, 50.8mm OD x 3.53mm Thk, Incl in 1, 14

1шт.

9

NSS

NOT SOLD SEPARAT

Guide Ring, 50mm ID x 55mm OD x 5.5mm Thk, Incl in 1, 14

1шт.

10

NSS

NOT SOLD SEPARAT

Piston Seal, 44mm ID x 55.6mm OD x 4mm Thk, Incl in 1, 14

1шт.

11

NSS

NOT SOLD SEPARAT

Cover Seal, 49.2mm ID x 55.6mm OD x 5.6mm Thk, Incl in 1, 14

1шт.

12

NSS

NOT SOLD SEPARAT

Seal, 31mm ID x 43mm OD x 10mm ThkIncl in 1, 14

1шт.

13

NSS

NOT SOLD SEPARAT

Guide Ring, 35mm OD x 9.6mm Thk, Incl in 1, 14

1шт.

14

NSS

NOT SOLD SEPARAT

Wiper, 31mm ID x 42mm OD x 10mm Thk, Incl in 1, 14

1шт.

15

LDR5017007

RING

Retaining

1шт.
