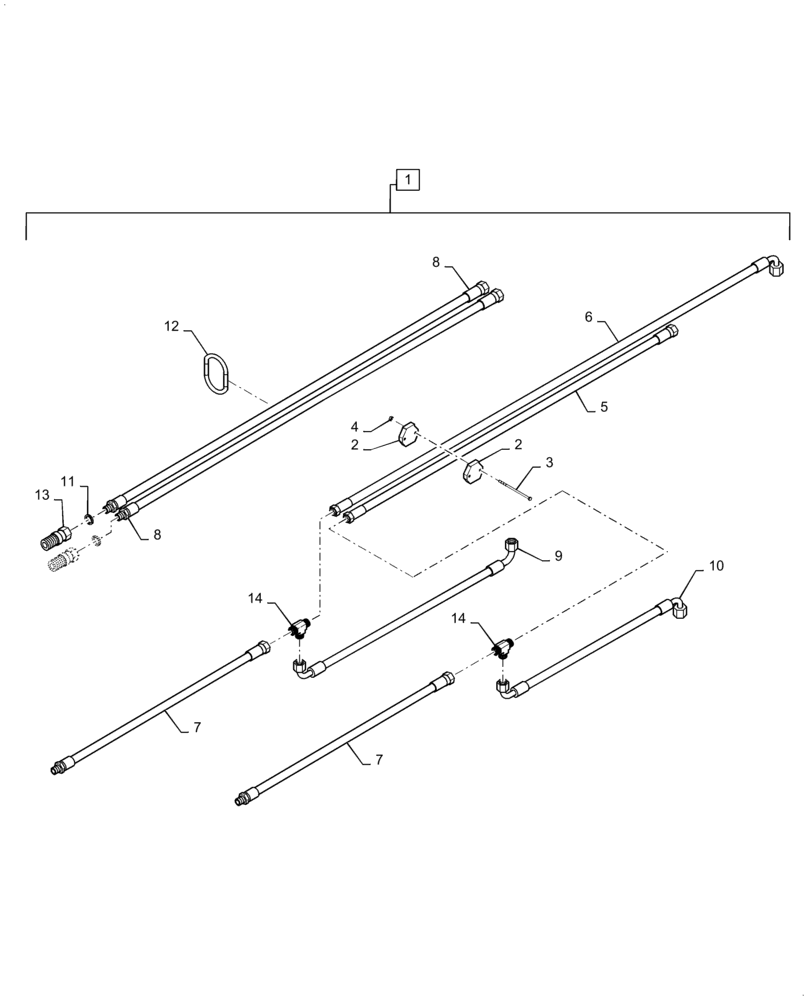

Запчасти Case IH L545 (35.701.AC[02]) - MAIN, HOSE KIT (35) - HYDRAULIC SYSTEMS

1

LDR60006038

HOSE KIT

Incl 2 - 14

1шт.

2

LDR5221880

HOSE CLAMP

2шт.

3

LDR5004030

SCREW

M6 x 45mm L

2шт.

4

LDR20708137

NUT

M6

2шт.

5

LDR9032473

HOSE

8mm, 3653mm L

1шт.

Breakdown on 35.100.BI (02)

1шт.

6

LDR9032472

HOSE

8mm, 4007mm L

1шт.

Breakdown on 35.100.BI (02)

1шт.

7

LDR9032331

HOSE

8mm, 850mm L

2шт.

Breakdown on 35.100.BI (02)

1шт.

8

LDR9032479

HOSE

8mm, 2805mm L

2шт.

Breakdown on 35.100.BI (02)

1шт.

9

LDR9031710

HOSE

8mm, 520mm L

1шт.

Breakdown on 35.100.BI (02)

1шт.

10

LDR9032474

HOSE

8mm, 375mm L

1шт.

Breakdown on 35.100.BI (02)

1шт.

11

LDR5013853

WASHER

Tredo 18

5шт.

12

LDR5221966

GUIDE

Hose

1шт.

13

LDR5044976

COUPLING

4шт.

14

LDR5028142

ADAPTER

2шт.
