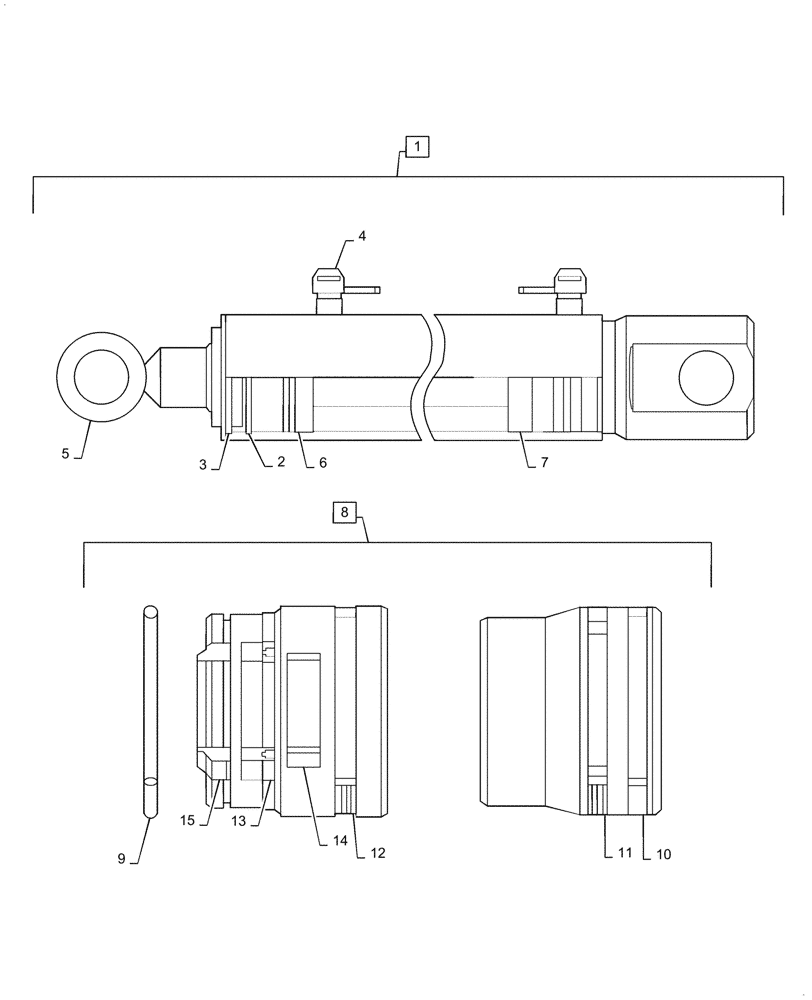

Запчасти Case IH L545 (35.701.010) - BOOM LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

1

LDR12726210

HYDRAULIC CYLINDER

Lift Cylinder, Incl 2 - 15

1шт.

2

LDR12716011

BEARING

1шт.

3

LDR12716012

PISTON

1шт.

4

LDR12726213

PISTON ROD

1шт.

5

LDR5017001

RING

Retaining

1шт.

6

LDR5017000

RING

Retaining

1шт.

7

LDR5028083

PLUG

2шт.

8

LDR5034114

SEAL KIT

Incl 9 - 15

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring, 3mm ID x 55mm OD, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Guide Ring, 5mm ID x 55mm OD, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Guide Ring, 6mm ID x 35mm OD, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Wiper, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Piston Seal, 4mm ID x 49mm OD, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Seal, 31mm ID x 43mm OD x 10mm Thk, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Cover Seal, 53mm ID x 60mm OD x 5mm Thk, Incl in 1

1шт.
