(55.010.AG) - MECHANICAL JOYSTICK

Запчасти Case IH L540 (55.010.AG) - MECHANICAL JOYSTICK (55) - ELECTRICAL SYSTEMS

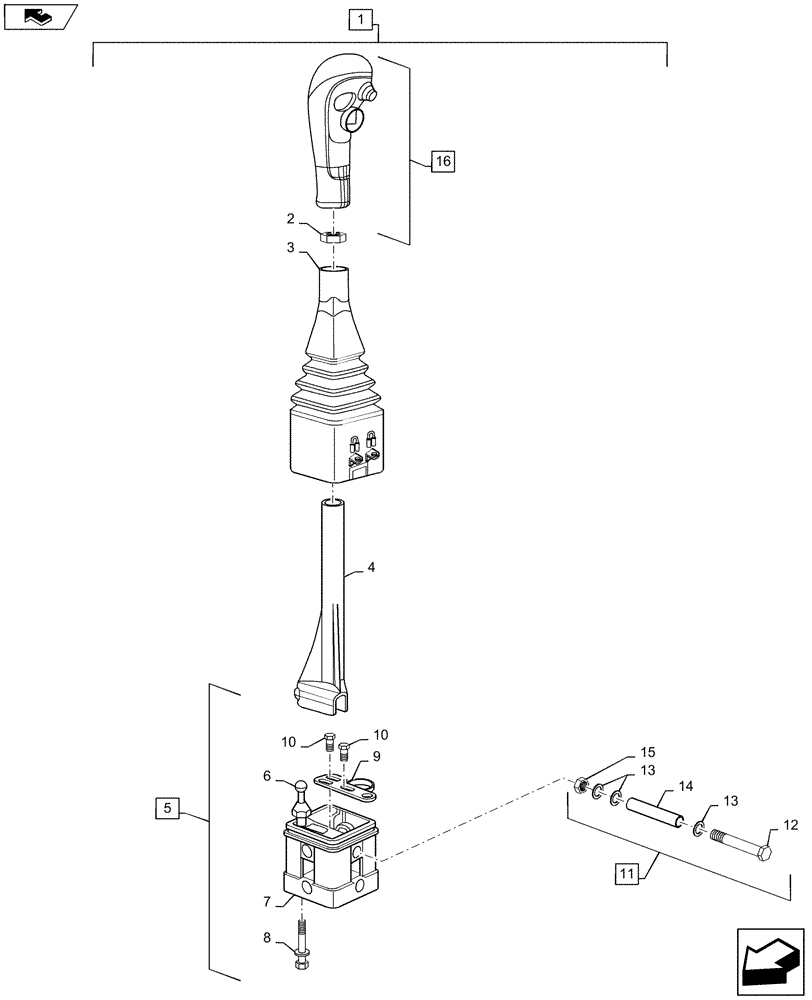

Схема запчастей Case IH L540 - (55.010.AG) - MECHANICAL JOYSTICK (55) - ELECTRICAL SYSTEMS
14
home
4
12
15
3
2
5
6
1
7
16
9
10
10
13
11
13
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

LDR5020938

JOYSTICK

Assy, Incl 2 - 16, Mechanical

1шт.

2

LDR4500351

NUT

1шт.

3

LDR4500350

BOOT

Gaiter

1шт.

4

LDR4500352

LEVER

Control

1шт.

5

LDR4500343

HOUSING

Joystick Coupling

1шт.

6

LDR4500353

PIVOT PIN

Control Lever

1шт.

7

NSS

NOT SOLD SEPARAT

Included In 5

2шт.

8

NSS

NOT SOLD SEPARAT

Included In 5

1шт.

9

NSS

NOT SOLD SEPARAT

Included In 5

1шт.

10

NSS

NOT SOLD SEPARAT

Included In 5

2шт.

11

LDR5220354

KIT

Screw

1шт.

12

NSS

NOT SOLD SEPARAT

Included In 11

2шт.

13

NSS

NOT SOLD SEPARAT

Included In 11

6шт.

14

NSS

NOT SOLD SEPARAT

Included In 11

2шт.

15

NSS

NOT SOLD SEPARAT

Included In 11

2шт.

16

LDR5020939

KNOB

Handle

1шт.
