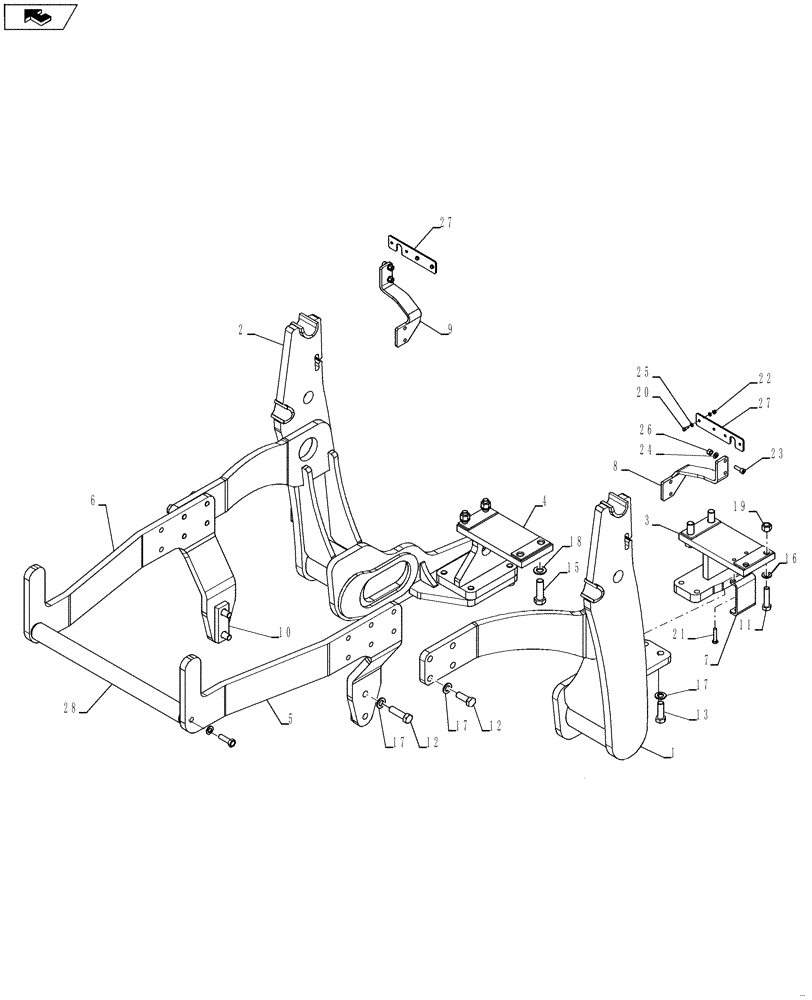

Запчасти Case IH L540 (39.100.AB[06]) - SUBFRAME SET, FARMALL 75N, 95N (39) - FRAMES AND BALLASTING

1

LDR10411969

FRAME

Left Hand

1шт.

2

LDR10411592

FRAME

Right Hand

1шт.

3

LDR10413288

BRACKET

Rear, Left Hand

1шт.

4

LDR10413289

BRACKET

Rear, Right Hand

1шт.

5

LDR10411593

GUARD

Grille, Left Hand

1шт.

6

LDR10411594

GUARD

Grille, Right Hand

1шт.

7

LDR10389665

BRACKET

Support

1шт.

8

LDR10411912

BRACKET

Support, Left Hand

1шт.

9

LDR10411913

BRACKET

Support, Right Hand

1шт.

10

LDR10411597

SPACER

15 mm

2шт.

11

LDR5002129

SCREW

M14 x 60 (8.8)

4шт.

12

LDR5002153

BOLT

M16 x 45 (8.8)

8шт.

13

LDR5002154

BOLT,M16 x 50mm

M16 x 50 (8.8)

8шт.

14

LDR5002757

SCREW

M16 x 1.5 x 80 (8.8)

4шт.

15

LDR5002779

SCREW

M18 x 1.5 x 60 (8.8)

4шт.

16

LDR5013107

WASHER

BRB 15 x 26 x 2

4шт.

17

LDR5013105

WASHER

BRB 17 x 30 x 3

20шт.

18

LDR5013114

WASHER

BRB 19 x 34 x 3

4шт.

19

LDR5011556

NUT

M14 Loc-King

4шт.

20

LDR5002003

SCREW

M5 x 14 (8.8)

4шт.

21

LDR5002055

SCREW

M8 x 40 (8.8)

2шт.

22

LDR5011051

NUT

M5

4шт.

23

LDR5004062

SCREW

M8 x 25 (8.8)

4шт.

24

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

BRB 8.4 x 16 x 1.5

4шт.

25

LDR5013112

WASHER

BRB 5.3 x 10 x 1.5

8шт.

26

LDR5011553

NUT,M8

M8 Loc-King

4шт.

27

LDR10411701

BRACKET

Support

2шт.

28

LDR335205

ROD

Tie

1шт.
