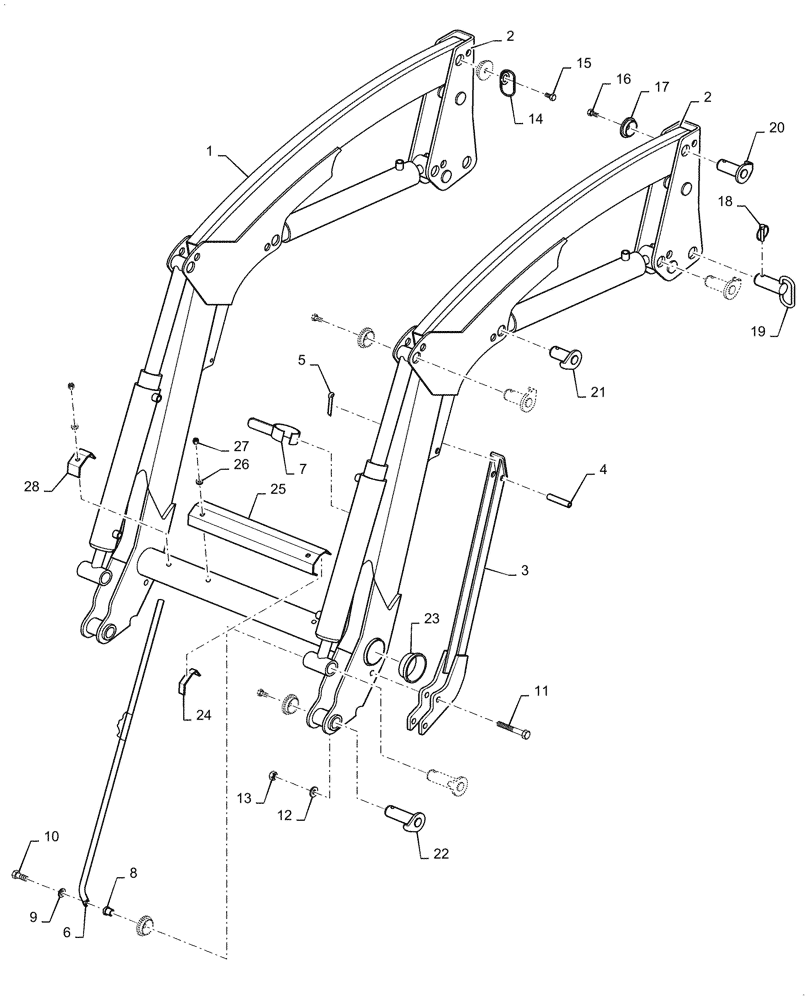

Запчасти Case IH L540 (39.100.AB[02]) - LOADER ARM FRAME, L540 (39) - FRAMES AND BALLASTING

1

LDR5221015C

BEAM

Loader

1шт.

2

LDR5221061C

BEARING ASSY

Bearing Box

2шт.

3

LDR5221123

SUPPORT

Leg

2шт.

4

LDR5221150

PIN

Support Leg

2шт.

5

LDR5221186

CLIP

Support Leg Pin

2шт.

6

LDR5215219

ROD

Indicator

1шт.

7

LDR5221188

HOLDER

Indicator Rod

1шт.

8

LDR5215227

SPACER

Indicator Rod

1шт.

9

LDR5013110

WASHER,10.50mm ID x 22mm OD x 2mm

1шт.

10

LDR5004920

SCREW

M10 x 50mm L

1шт.

11

LDR5002114

SCREW

M12 x 100mm L

2шт.

12

LDR5013103

WASHER,12mm ID x 22mm OD

2шт.

13

LDR5011911

NUT,M12

2шт.

14

LDR5221182

GUIDE

Hydraulic Hose

1шт.

15

LDR5004085

SCREW

M10 x 30mm L

1шт.

16

LDR5004917

SCREW,MC6S

M10 x 20mm L

10шт.

17

LDR5215131

CAP,Locking Cover

12шт.

18

LDR5017002

LINCH PIN

Bearing Box

2шт.

19

LDR5221155

LOCK PIN

Lower, Bearing Box

2шт.

20

LDR9020037

PIVOT PIN,30mm OD x 96mm L

Upper, Bearing Box

4шт.

21

LDR9020039

PIVOT PIN

Lower, Boom Lift Cylinder

4шт.

22

LDR9020034

PIVOT PIN,30mm OD x 127mm L

Lower, Bucket Lift Cylinder

4шт.

23

LDR5221165

COVER

Loader Arm

2шт.

24

LDR5221187

HOSE PROTECTION

LH, Hydraulic Hose

2шт.

25

LDR5221146

HOSE CLAMP

Mid Mount Valve

1шт.

26

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

3шт.

27

LDR5011553

NUT,M8

3шт.

28

LDR5221147

HOSE CLAMP

RH

1шт.
