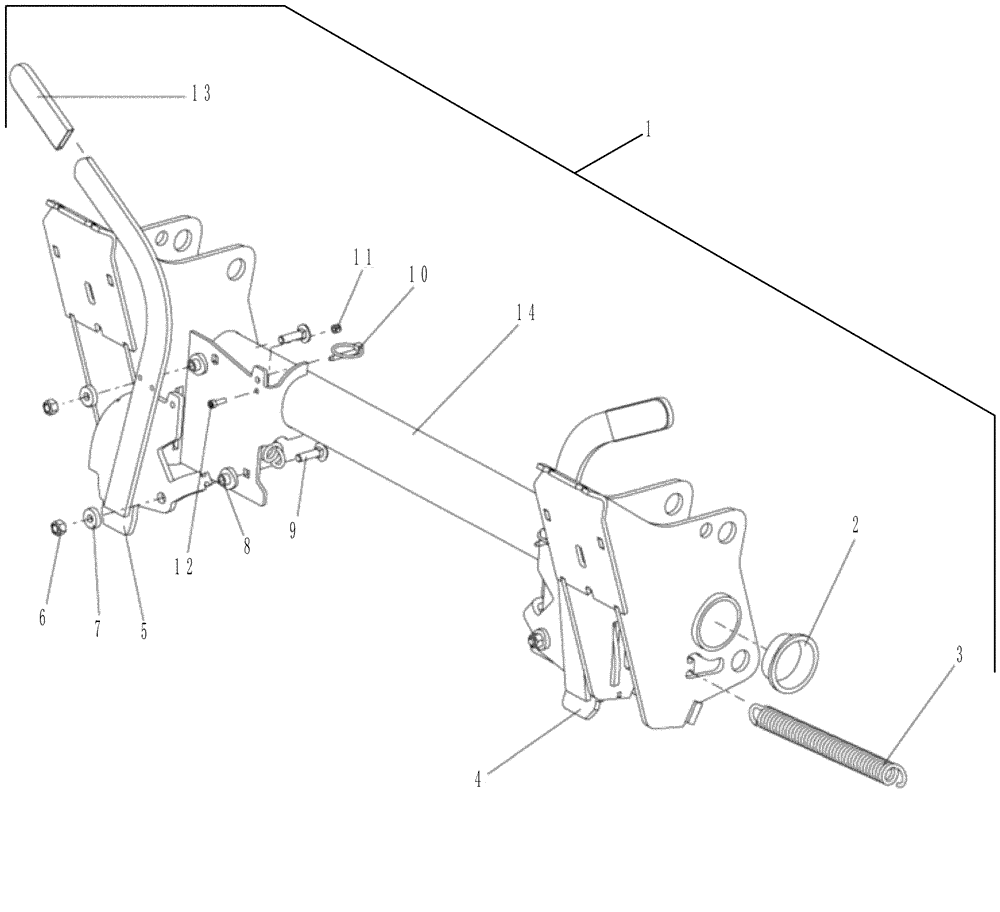

Запчасти Case IH L530 (82.300.AD[01]) - TOOL CARRIER (82) - FRONT LOADER & BUCKET

1

LDR5221081C

CARRIER

Tool, Complete, Inc. 2-14

1шт.

2

LDR5221164

COVER

2шт.

3

LDR5221144

SPRING

2шт.

4

LDR5221138

LOCKING HANDLE

Left Hand

1шт.

5

LDR5221142

LOCKING HANDLE

Right Hand

1шт.

6

LDR5011554

NUT,M10

4шт.

7

LDR5013177

WASHER

4шт.

8

LDR5221143

SLEEVE

4шт.

9

LDR5006003

SCREW

4шт.

10

LDR5017002

LINCH PIN

2шт.

11

LDR20708137

NUT

2шт.

12

LDR5004913

SCREW

2шт.

14

LDR5221071C

CARRIER

Tool

1шт.

13

LDR5022144

HANDLE

Cover

2шт.
