(39.100.AB[01]) - LOADER ARM FRAME, L530

Запчасти Case IH L530 (39.100.AB[01]) - LOADER ARM FRAME, L530 (39) - FRAMES AND BALLASTING

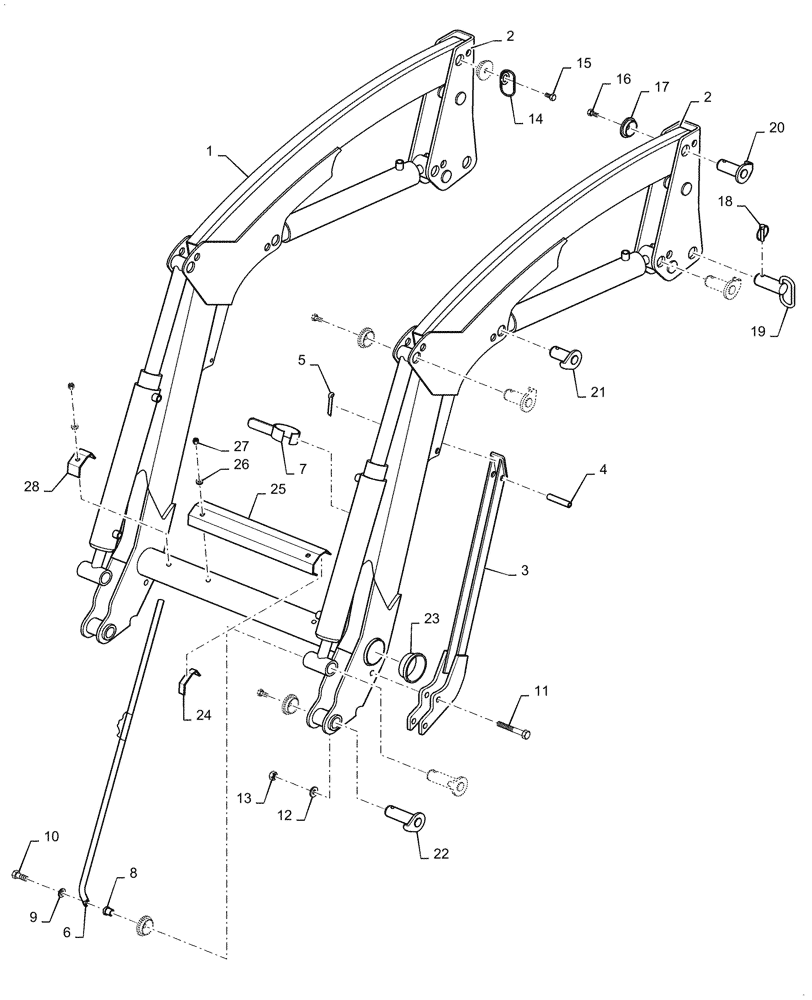

Схема запчастей Case IH L530 - (39.100.AB[01]) - LOADER ARM FRAME, L530 (39) - FRAMES AND BALLASTING
21
5
15
7
25
17
2
24
12
1
27
4
2
11
16
28
26
14
19
20
22
18
23
3
10
9
6
13
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

LDR5221014C

BEAM

Loader

1шт.

2

LDR5221061C

BEARING ASSY

Box

2шт.

3

LDR5221123

SUPPORT

Leg

2шт.

4

LDR5221150

PIN

Support Leg

2шт.

5

LDR5221186

CLIP

Suppot Leg Pin

2шт.

6

LDR5215219

ROD

Indicator

1шт.

7

LDR5215208

HOLDER

Indicator Rod

1шт.

8

LDR5215227

SPACER

Indicator Rod

1шт.

9

LDR5013110

WASHER,10.50mm ID x 22mm OD x 2mm

1шт.

10

LDR5004920

SCREW

M10 x 50mm L

1шт.

11

LDR5002114

SCREW

M12 x 100mm L

2шт.

12

LDR5013103

WASHER,12mm ID x 22mm OD

2шт.

13

LDR5011911

NUT,M12

2шт.

14

LDR5221182

GUIDE

Hydraulic Hose

1шт.

15

LDR5004085

SCREW

M10 x 30mm L

1шт.

16

LDR5004917

SCREW,MC6S

10шт.

17

LDR5215131

CAP,Locking Cover

12шт.

18

LDR5017002

LINCH PIN

Bearing Box

2шт.

19

LDR5221155

LOCK PIN

Lower, Bearing Box

2шт.

20

LDR9020037

PIVOT PIN,30mm OD x 96mm L

Upper, Bearing Box

4шт.

21

LDR9020039

PIVOT PIN

Lower, Boom Lift Cylinder

4шт.

22

LDR9020034

PIVOT PIN,30mm OD x 127mm L

Lower, Bucket Lift Cylinder

4шт.

23

LDR5221165

COVER

Loader Arm, Dust

2шт.

24

LDR5221187

HOSE PROTECTION

LH, Hydraulic Hose

2шт.

25

LDR5221146

HOSE CLAMP

Mid Mount Valve

1шт.

26

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

3шт.

27

LDR5011553

NUT,M8

3шт.

28

LDR5221147

HOSE CLAMP

RH

1шт.
