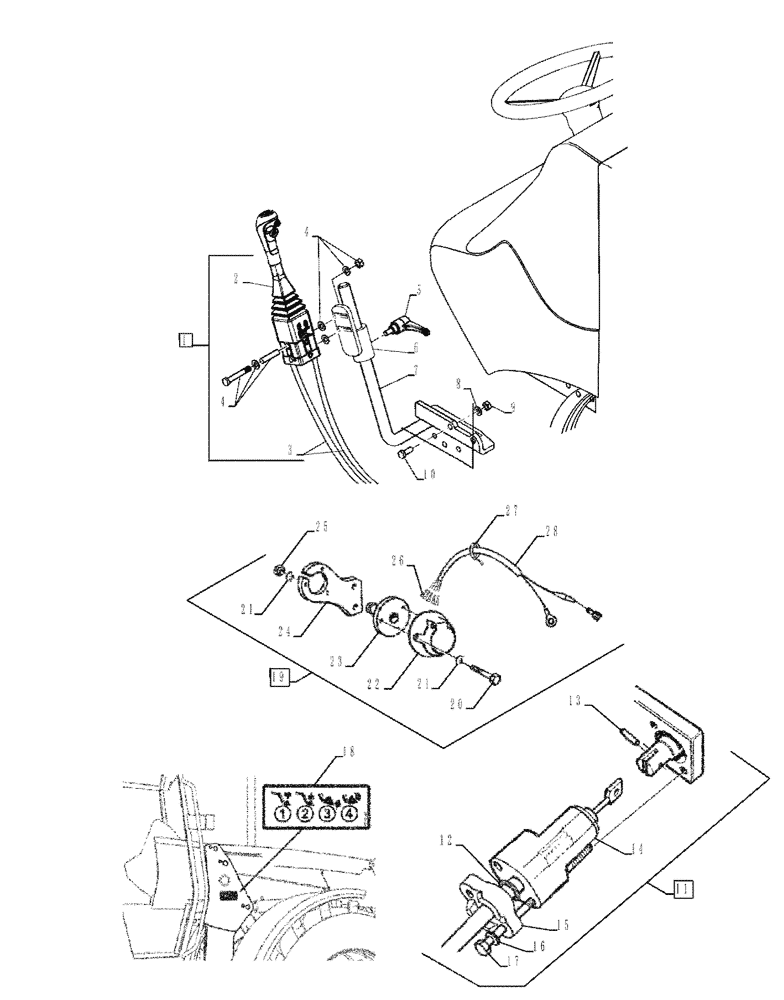

Запчасти Case IH L530 (35.525.AA[04]) - HYDRAULIC KIT JOYSTICK CONTROL, FARMALL (35) - HYDRAULIC SYSTEMS

1

LDR5020453

CONTROL

Inc. 2-4

1шт.

2

LDR5020938

JOYSTICK

1шт.

3

LDR5020942

CABLE

Joystick Control, 1600 mm

2шт.

4

LDR5220354

KIT

Hardware, Inc. Screw (2), Washer (6), Nut (2), Sleeve (2)

1шт.

5

LDR5022132

HANDLE,M8 x 16mm

1шт.

6

LDR335441

SUPPORT

Support

1шт.

7

LDR10411707

SUPPORT

Control Device

1шт.

8

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

BRB 8.4 x 16 x 1.5

2шт.

9

LDR5011053

NUT

M8

2шт.

10

LDR5004061

SCREW

MC6S M8 x 20 (8.8)

2шт.

11

LDR313262

SERVICE KIT

Joystick Control Cables, Inc. 12-17

1шт.

12

LDR5016681

LOCKING RING

Joystick Control Cables

2шт.

13

LDR5016205

LOCK PIN

Joystick Control Cables

2шт.

14

LDR302697

ADJUSTING SLEEVE

Joystick Control Cables

2шт.

15

LDR302698

CLAMP

Joystick Control Cables

2шт.

16

LDR5013112

WASHER

5.3 x 10, Joystick Control Cables

4шт.

17

LDR5002004

SCREW

M5 x 80, Joystick Control Cables

4шт.

18

LDR11133365

DECAL

Joystick Control

1шт.

19

LDR313497

SERVICE KIT

Electric Mounting, Inc. 20-28

1шт.

20

LDR5004914

SCREW

M5 x 40, Electric Mounting

3шт.

21

LDR5013112

WASHER

5.3 x 10, Electric Mounting

6шт.

22

LDR5024378

ELEC CONNECTOR

Electric Mounting

1шт.

23

LDR5102039

COVER

Electric Mounting

1шт.

24

LDR5201142

BRACKET

Electric Mounting

1шт.

25

LDR5011051

NUT

M5, Electric Mounting

3шт.

26

LDR5103017

WIRE HARNESS

Electric Mounting

1шт.

27

LDR5033621

CABLE CLIP

Electric Mounting

5шт.

28

LDR313476

WIRE HARNESS

Electric Mounting

1шт.
