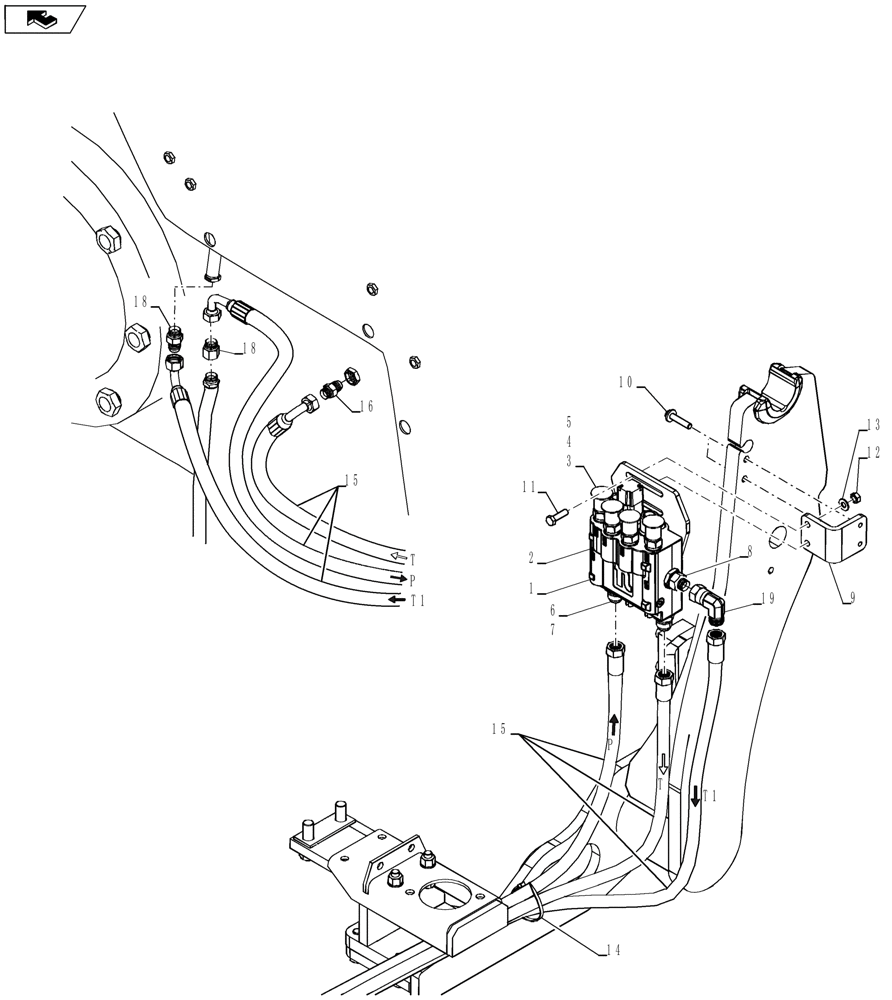

Запчасти Case IH L530 (35.525.AA[03]) - HYDRAULIC KIT, FARMALL 75N, 95N (35) - HYDRAULIC SYSTEMS

1

LDR10550077

VALVE

Inc. 2-8

1шт.

2

LDR10550062

CONTROL VALVE

1шт.

3

LDR5013853

WASHER

1/2"

4шт.

4

LDR5044131

QUICK MALE COUPLING

Quick, 1/2"

4шт.

5

LDR5044129

CAP

Dust

4шт.

6

LDR5013854

WASHER,M20

3/4"

2шт.

7

LDR5027463

ADAPTER

1-1/16"

2шт.

8

LDR10550072

ADAPTER

Pressure Carry Over, 1-1/16"

1шт.

9

LDR10391709

BRACKET

Support

1шт.

10

LDR5005999

SCREW,M10 x 45mm

M10 x 45 (8.8)

2шт.

11

LDR5002084

SCREW,M10 x 35mm, Cl 8.8

M10 x 35 (8.8)

2шт.

12

LDR5011054

NUT,M10, Cl 8.8

M10

2шт.

13

LDR5013110

WASHER,10.50mm ID x 22mm OD x 2mm

BRB 10.5 x 22 x 2

2шт.

14

LDR5033606

CABLE TIE

6шт.

15

LDR9031619

FLEXIBLE HOSE

1-1/16" - 7/8" JIC x 2000

3шт.

16

LDR5027483

END FITTING,7/8" JIC x M18 x 1.5

Adapter, 7/8" UNF JIC-M 18 x 1.5

1шт.

17

LDR5027935

END FITTING

Adapter, 7/8" UNF JIC-1-1/16" UNFJIC

1шт.

18

LDR20717257

ADAPTER

7/8" UNF JIC-1-1/16" UNFJIC

1шт.

19

LDR5027936

ELBOW

1-1/16" UNFJIC-1-1/16" UNFJIC

1шт.
