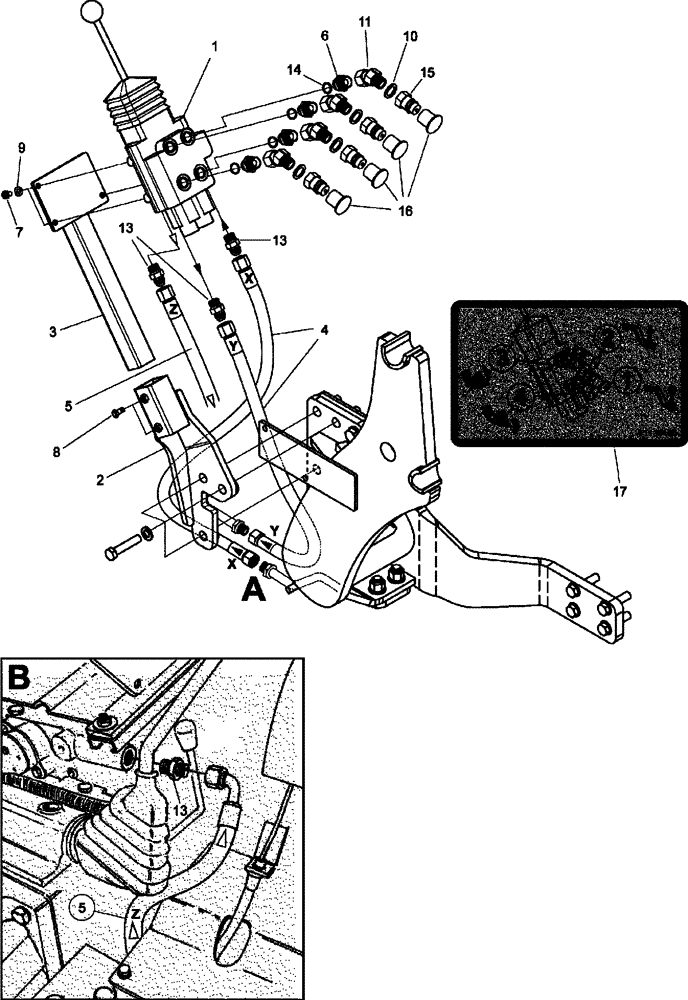

Запчасти Case IH L530 (35.525.AA[01]) - HYDRAULIC KIT, FARMALL 45A, 55A (35) - HYDRAULIC SYSTEMS

1

LDR10550401

VALVE

Loader Control

1шт.

2

LDR10411021

BRACKET

Support

1шт.

3

LDR10391840

BRACKET

Support

1шт.

4

LDR9031621

FLEXIBLE HOSE

2шт.

5

LDR9031622

FLEXIBLE HOSE

1шт.

6

LDR1120002

ADAPTER

4шт.

7

LDR5001902

SCREW

3шт.

8

LDR5002058

SCREW

2шт.

9

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

3шт.

10

LDR5013853

WASHER

4шт.

11

LDR5027420

ADAPTER

4шт.

12

LDR5027483

END FITTING,7/8" JIC x M18 x 1.5

1шт.

13

LDR5028078

ADAPTER

3шт.

14

LDR5037027

O-RING

4шт.

15

LDR5044128

QUICK MALE COUPLING

4шт.

16

LDR5044129

CAP

Dust

4шт.

17

LDR11138465

DECAL

Instruction

1шт.

18

LDR5033606

CABLE TIE

(Not Shown)

6шт.
