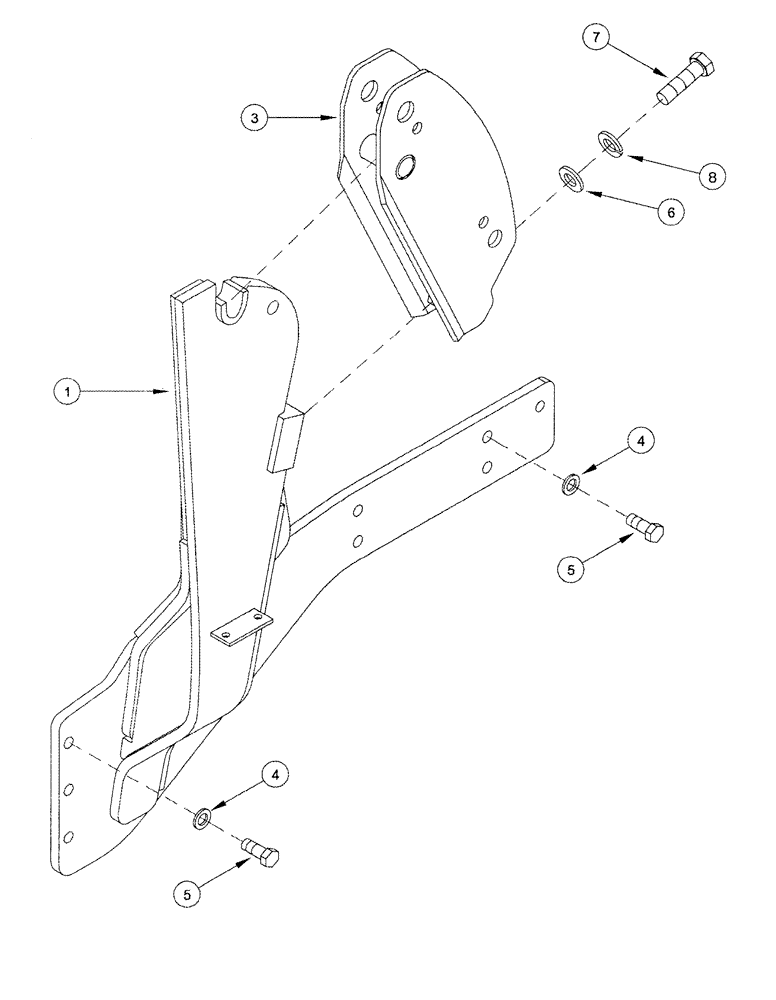

Запчасти Case IH L505 (09-06) - MOUNTING BRACKETS MX80C - MX100C (09) - CHASSIS/ATTACHMENTS

1

345635A2

BRACKET

Right Hand

1шт.

1

345636A1

BRACKET

Left Hand, Not Illustrated

1шт.

3

337628A3

BOOM

2шт.

4

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

14шт.

5

627-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

14шт.

6

496-31106

WASHER,1 1/16" x 2" x .219", HDN

1-1/16 x 2 x 7/32

2шт.

7

426-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 8

1 x 3-1/2

2шт.

8

492-11100

LOCK WASHER,1"

1"

2шт.
