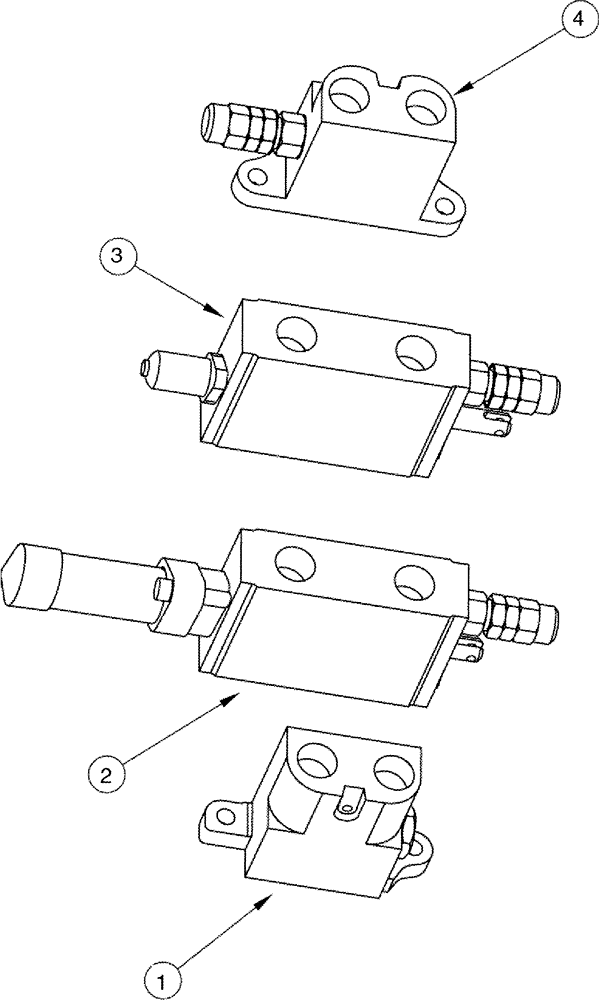

Запчасти Case IH L505 (08-44) - CONTROL VALVE EXTERNAL VALVE 2 FUNCTION MX80C - MX100C WITHOUT SELF LEVELING (08) - HYDRAULICS

395675A1

VALVE

Consists Of 1 - 4

1шт.

1

105087A1

VALVE

Inlet

1шт.

2

406712A1

HYD VALVE SECTION

Boom

1шт.

3

406627A1

HYD VALVE SECTION

Bucket

1шт.

4

1344744C1

OUTLET

Outlet

1шт.

5

406713A1

KIT

Includes 6 - 13

1шт.

6

406646A1

KIT

Includes 7 - 8

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

12шт.

8

NSS

NOT SOLD SEPARAT

Wiper

3шт.

9

NSS

NOT SOLD SEPARAT

Nut, Special

6шт.

10

NSS

NOT SOLD SEPARAT

Plug

4шт.

11

NSS

NOT SOLD SEPARAT

Rod, Tie

3шт.

12

NSS

NOT SOLD SEPARAT

Valve, Relief

2шт.

13

NSS

NOT SOLD SEPARAT

Spring

2шт.
