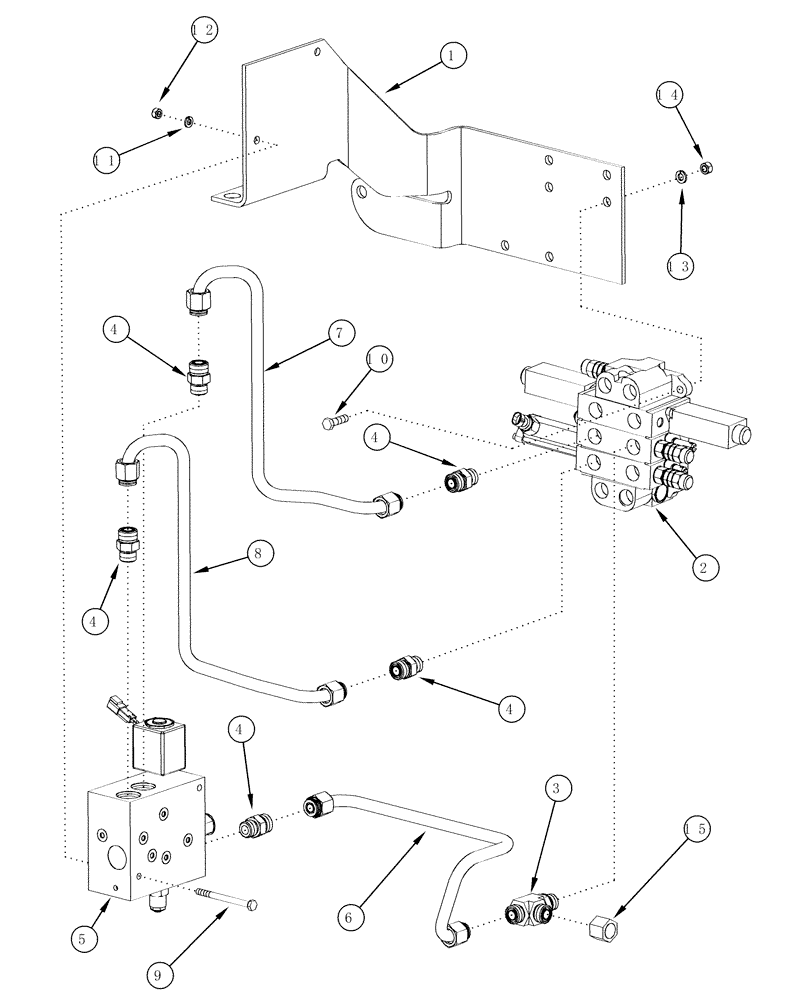

Запчасти Case IH L505 (08-43) - MOUNTING BRACKETS EXTERNAL VALVE MX80C - MX100C WITH SELF LEVELING (08) - HYDRAULICS

1

399332A1

BRACKET

1шт.

2

395672A1

VALVE

Three Spool, See Figure 8-47

1шт.

3

201-420

TEE,1"-14 x 7/8"-14 Run, ORFS

1шт.

4

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

5шт.

5

391485A1

VALVE

Self Leveling

1шт.

6

395599A2

TUBE

1шт.

7

395303A2

TUBE

1шт.

8

395302A2

TUBE

1шт.

9

413-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

2шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

11

492-11031

LOCK WASHER,5/16"

2шт.

12

425-105

NUT,5/16"-18, G5

2шт.

13

492-11038

LOCK WASHER,3/8"

3шт.

14

425-106

NUT,3/8"-16, Cl 5

3шт.

15

201-906

CAP,1"-14 ORFS

1шт.
