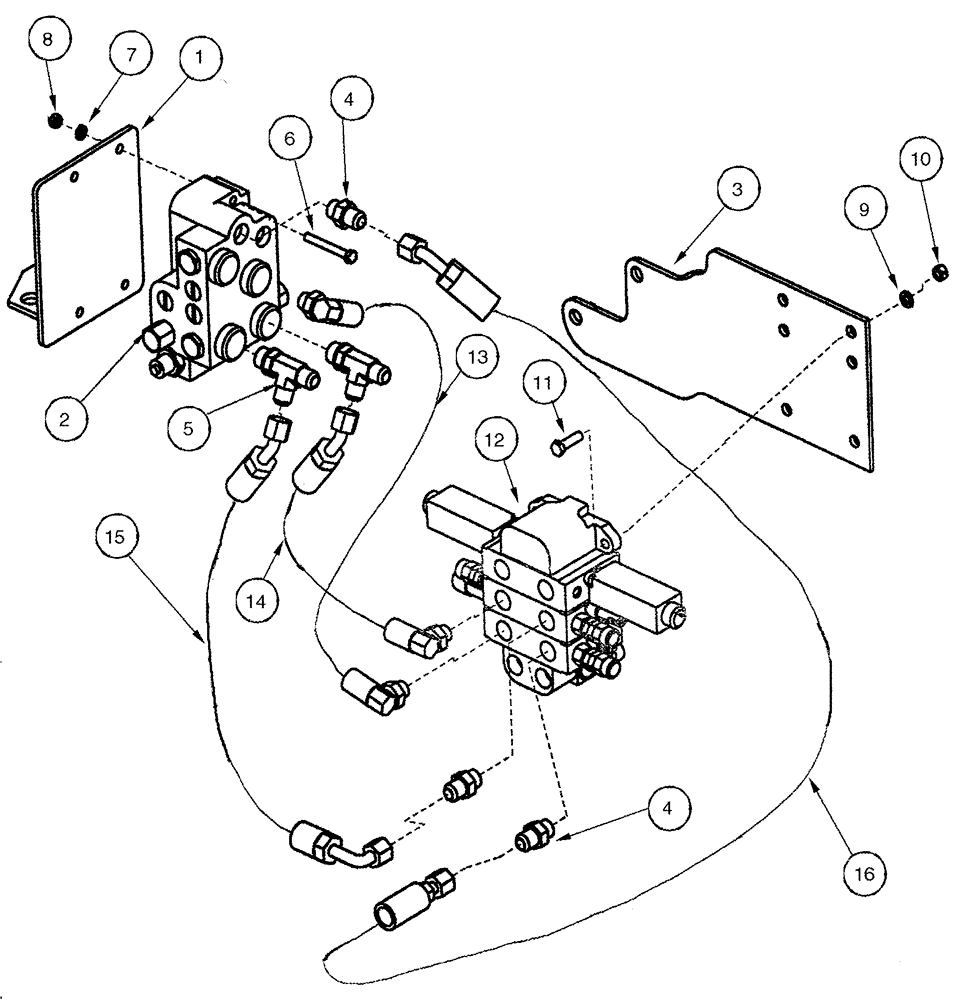

Запчасти Case IH L505 (08-38) - MOUNTING BRACKETS EXTERNAL VALVE 3 FUNCTION - C70 - C100 WITH SELF LEVELING (08) - HYDRAULICS

1

397099A1

PLATE ASSY.

1шт.

2

328000A2

VALVE, CONTROL

1шт.

3

370032A1

PLATE

1шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or

3шт.

5

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl br x fl x Or

2шт.

6

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

7

492-11031

LOCK WASHER,5/16"

2шт.

8

425-105

NUT,5/16"-18, G5

2шт.

9

492-11038

LOCK WASHER,3/8"

3шт.

10

425-106

NUT,3/8"-16, Cl 5

3шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

12

395678A1

VALVE

See Figure 8-49

1шт.

13

395330A1

HOSE ASSY.

368 mm (14.5 in)

1шт.

14

395328A1

HOSE ASSY.

305 mm (12 in)

1шт.

15

395329A1

HOSE ASSY.

432 mm (17 in)

1шт.

16

395327A1

HOSE

305 mm (12 in)

1шт.
