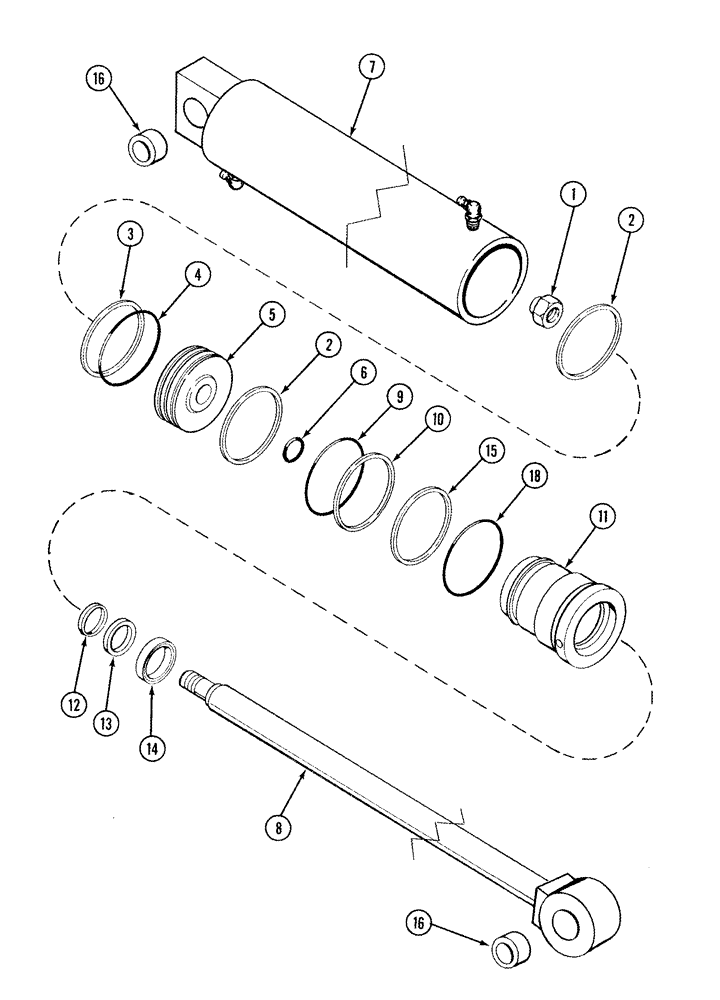

Запчасти Case IH L505 (08-25[01]) - CYLINDER ASSY LIFT L505 (08) - HYDRAULICS

73.5 mm (3 in) ID x 524 mm (21.39 in) strk

1шт.

338100A2

CYLINDER

73.5 ID x 524 mm strk, Consists Of 1-18

2шт.

1

NSS

NOT SOLD SEPARAT

Nut, Lock

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Wear

2шт.

3

NSS

NOT SOLD SEPARAT

Seal

1шт.

4

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

5

348470A1

PISTON

1шт.

6

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

7

NSS

NOT SOLD SEPARAT

11/16 fc sl x 14 orb, Body

1шт.

8

338136A1

STEM

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

10

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

11

348460A1

HEAD

1шт.

12

NSS

NOT SOLD SEPARAT

Seal

1шт.

13

NSS

NOT SOLD SEPARAT

Seal

1шт.

14

NSS

NOT SOLD SEPARAT

Wiper

1шт.

15

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

16

NSS

NOT SOLD SEPARAT

Bushing

4шт.

17

NSS

NOT SOLD SEPARAT

Plug

2шт.

18

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

352544A1

SEAL KIT

Consists Of 2-4,6,9,10,12-15,18

1шт.
