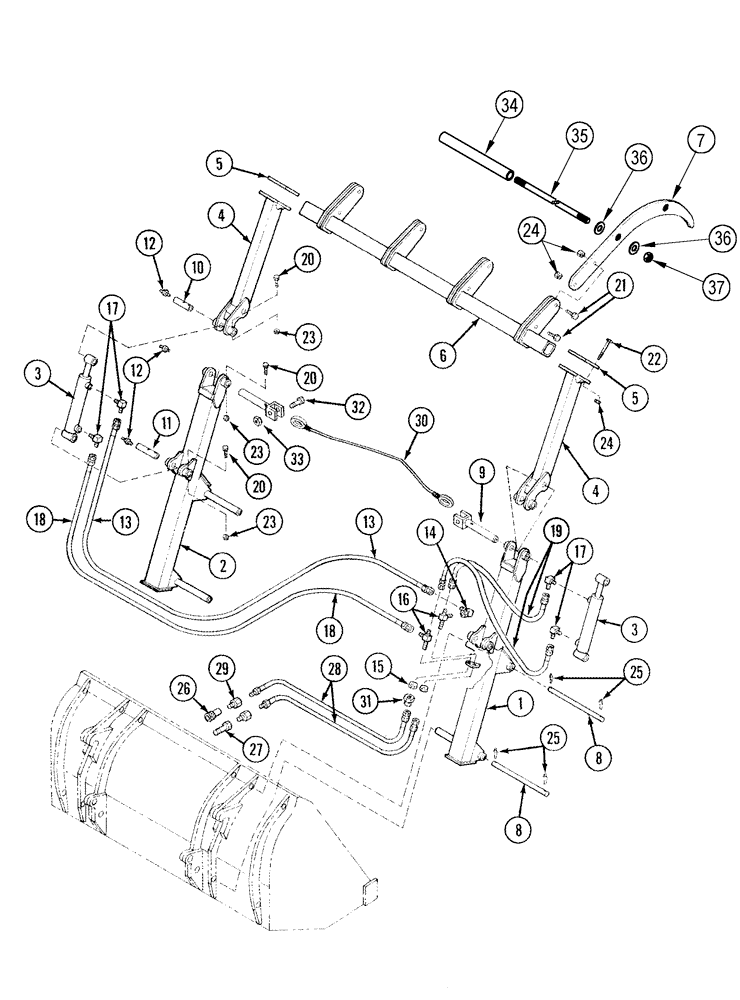

Запчасти Case IH L500 (9-22) - GRAPPLE (09) - CHASSIS/ATTACHMENTS

1

352471A1

TUBE

right hand

1шт.

2

352470A1

TUBE

left hand

1шт.

3

352465A1

CYLINDER,Double Acting, 28.57mm Rod, 203.2mm Stroke

Includes : 3A-3F

2шт.

3a

352496A1

TUBE,50.8 mm Diameter

BODY

1шт.

3b

352498A1

STEM

ROD piston

1шт.

3c

352499A1

GLAND

HEAD cylinder

1шт.

3d

352500A1

PISTON

1шт.

3e

329-1112

NUT,3/4"-16, G8

1шт.

3f

352501A1

SEAL KIT

SEALS

1шт.

4

352472A1

TUBE

extension

2шт.

5

352473A1

PLATE

mounting

2шт.

6

352468A1

TUBE

connecting

1шт.

7

352469A2

TINE

4шт.

8

352467A1

PIN,19.05mm OD x 368.3mm L

4шт.

9

352466A2

PIN,25.4mm OD x 184.15mm L

2шт.

10

352475A1

PIN,25.4mm OD x 107.95mm L

2шт.

11

352474A1

PIN,25.4mm OD x 120.65mm L

2шт.

12

219-87

LUBE NIPPLE,1/4" - 28 NPTF

6шт.

13

352478A1

HOSE ASSY.

1шт.

14

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

15

218-1254

LOCK NUT,Blkhd, 9/16"-18

2шт.

16

218-804

TEE,9/16"-18, 37 Degree, Blkhd

2шт.

17

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

4шт.

18

352477A1

HOSE ASSY.

1шт.

19

352476A1

HOSE ASSY.

2шт.

20

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

6шт.

21

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

8шт.

22

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

8шт.

23

231-4144

NUT,1/4"-20, GB

6шт.

24

231-4148

NUT,1/2"-13, GB

16шт.

25

A30338

PIN

lock

8шт.

26

1272400C1

COUPLING

female

1шт.

27

1272399C2

QUICK MALE COUPLING

7/8 NF, Self-Sealing, Male

1шт.

28

352488A1

HOSE ASSY.

2шт.

29

352508A1

ADAPTER

2шт.

30

361392A1

CABLE

1шт.

31

361391A1

FITTING

adapter

1шт.

32

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

33

231-4146

NUT,3/8"-16, GB

2шт.

34

435720A1

SLEEVE

6шт.

35

435721A1

ROD

2шт.

36

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

20шт.

37

232-53412

FLANGE NUT,Flg, 3/4"-10

4шт.
