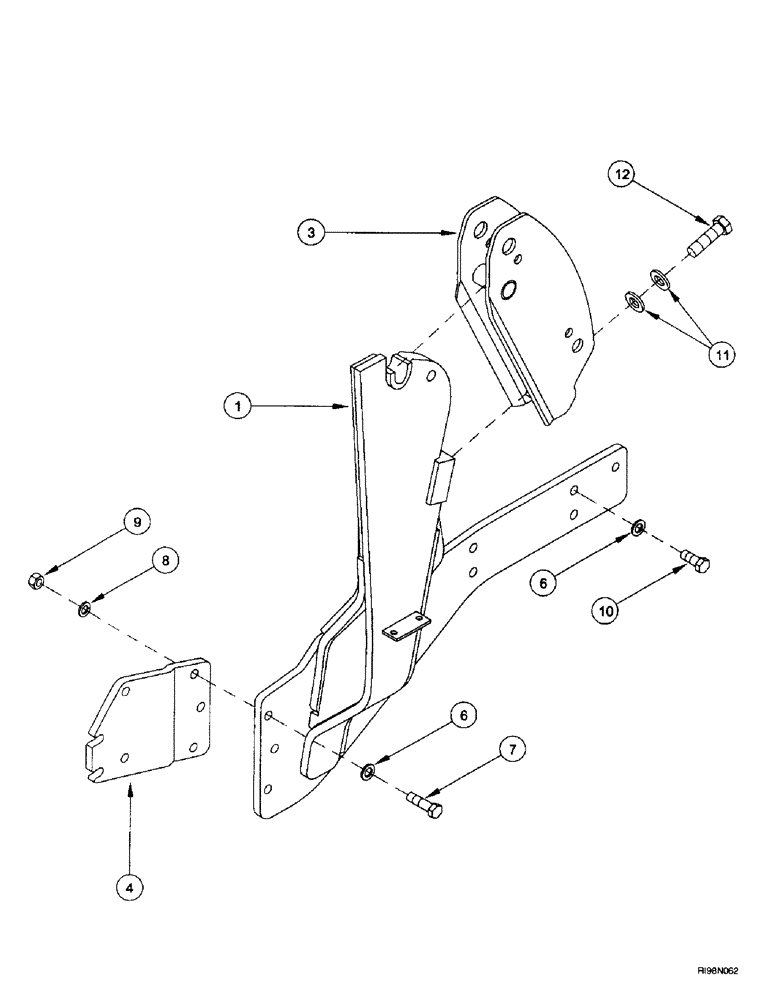

Запчасти Case IH L500 (9-10) - MOUNTING BRACKETS (CX70 - CX100) (09) - CHASSIS/ATTACHMENTS

1

345637A1

BRACKET

right hand

1шт.

1

345638A1

BRACKET

left hand Not Illustrated

1шт.

3

337628A3

BOOM

BRACKET

2шт.

4

338548A2

PLATE

right hand

1шт.

4

338549A2

PLATE

left hand Not Illustrated

1шт.

6

896-10020

WASHER,21.8mm ID x 37.5mm OD x 4mm Thk

14шт.

7

828-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

6шт.

8

892-11020

LOCK WASHER,M20

6шт.

9

829-1320

NUT,M20, Cl 10

6шт.

10

628-20050

BOLT,Hex, M20 x 50mm, Cl 10.9

8шт.

11

496-31106

WASHER,1 1/16" x 2" x .219", HDN

4шт.

12

426-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 8

2шт.
