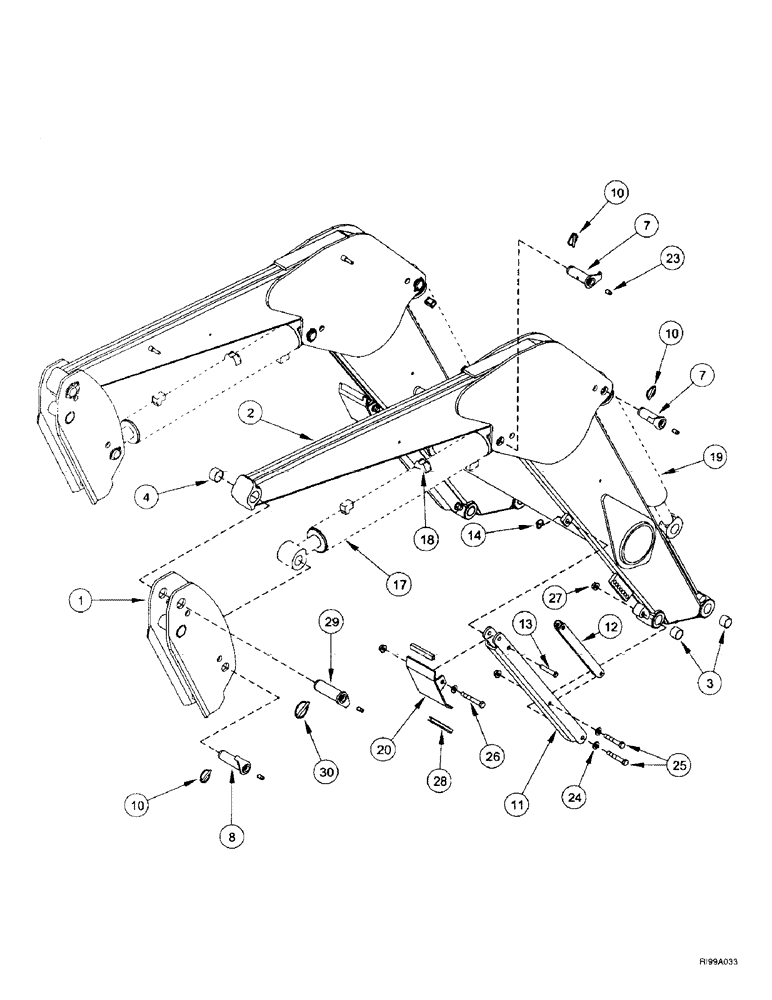

Запчасти Case IH L500 (9-02) - FRAME (L500/L550) (09) - CHASSIS/ATTACHMENTS

1

337628A3

BOOM

BRACKET

2шт.

2

300000A2

FRAME

1шт.

3

310955A1

BUSHING

8шт.

4

318872A1

BUSHING

4шт.

7

303073A2

PIN

4шт.

8

319461A2

PIN

2шт.

10

A30338

PIN

lock

6шт.

11

320886A2

CHANNEL

2шт.

12

320794A1

TUBE,365 mm Length

2шт.

13

439-5844

HEADED PIN,1/2" x 2 3/4", G5

2шт.

14

302676A1

LINCH PIN

2шт.

17

REF

INSTRUCTION

CYLINDER ASSY. LIFT, See Figure(s) : 8-74, 8-76

2шт.

18

D38648

BLOCK

saddle

2шт.

19

REF

INSTRUCTION

CYLINDER ASSY. BUCKET, See Figure(s) : 8-78, 8-80

2шт.

20

328951A1

STAND

foot

2шт.

23

219-14

LUBE NIPPLE,1/4" NPTF

8шт.

24

495-11053

WASHER,1/2", SAE

6шт.

25

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

4шт.

26

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

27

231-5348

FLANGE NUT,Flg, 1/2"-13

5шт.

28

338889A1

MOLDING

trim

4шт.

29

338818A1

PIN

2шт.

30

A61560

LOCK PIN

2шт.
