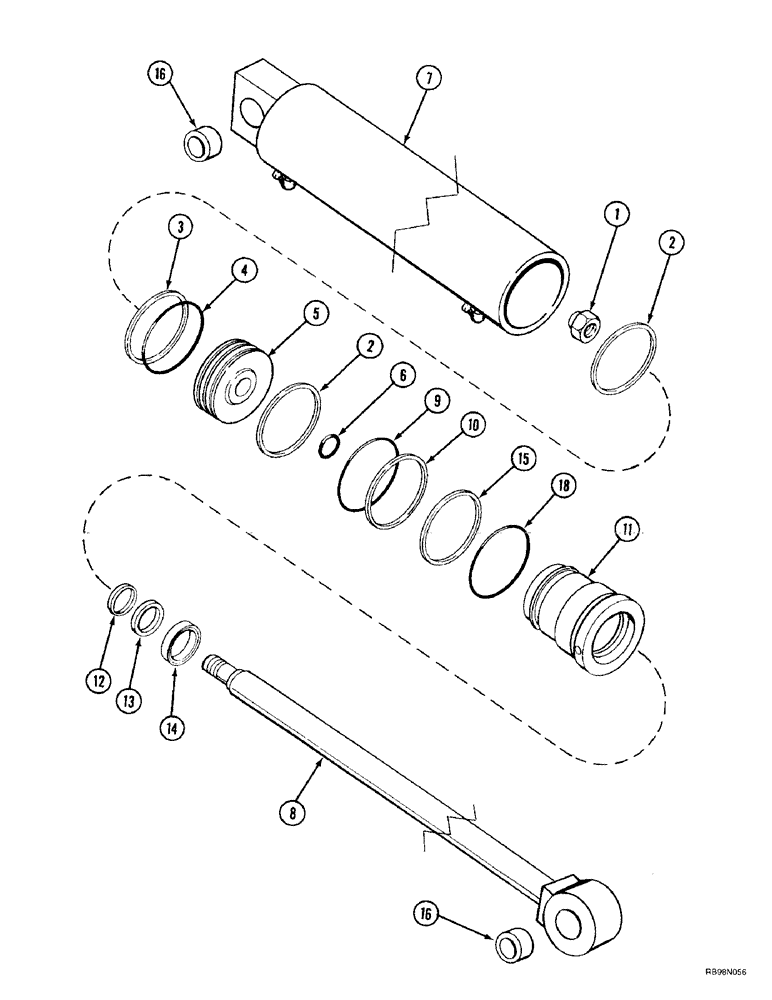

Запчасти Case IH L500 (8-080) - CYLINDER ASSY - BUCKET (L550, L500 W/ QUICK ATTAC ), 73.5 MM (3 IN) ID X 417 MM (17 IN) STRK (08) - HYDRAULICS

338103A1

CYLINDER

ASSY., Consists Of : 1-18

2шт.

1

232-46314

LOCK NUT,7/8"-14, GC

1шт.

2

NSS

NOT SOLD SEPARAT

RING wear

2шт.

3

NSS

NOT SOLD SEPARAT

SEAL

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING

1шт.

5

348470A1

PISTON

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING

1шт.

7

338121A1

TUBE

BODY

1шт.

8

338139A1

STEM

ROD piston

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING

1шт.

10

NSS

NOT SOLD SEPARAT

RING backup

1шт.

11

348460A1

HEAD

cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER

1шт.

15

NSS

NOT SOLD SEPARAT

RING wear

1шт.

16

NSS

NOT SOLD SEPARAT

BUSHING

4шт.

17

NSS

NOT SOLD SEPARAT

PLUG

2шт.

18

NSS

NOT SOLD SEPARAT

O-RING

1шт.

352544A1

SEAL KIT

SEALS, Consists Of : 2-4,6,9,10,12-15,18

1шт.
