(8-078) - CYLINDER ASSY - BUCKET (L500 WITHOUT QUICK ATTACH BUCKET), 70MM (2.75 IN) ID X 400MM (15.75 IN) STRK

Запчасти Case IH L500 (8-078) - CYLINDER ASSY - BUCKET (L500 WITHOUT QUICK ATTACH BUCKET), 70MM (2.75 IN) ID X 400MM (15.75 IN) STRK (08) - HYDRAULICS

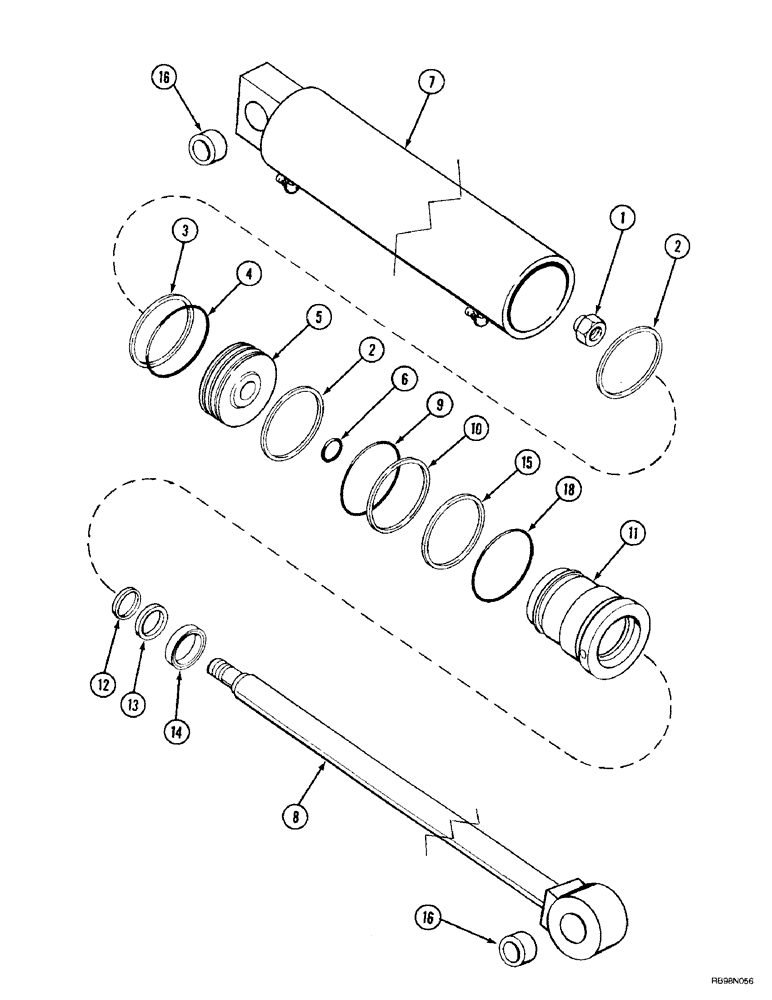

Схема запчастей Case IH L500 - (8-078) - CYLINDER ASSY - BUCKET (L500 WITHOUT QUICK ATTACH BUCKET), 70MM (2.75 IN) ID X 400MM (15.75 IN) STRK (08) - HYDRAULICS
4
2
8
18
13
11
3
16
15
9
5
7
1
6
12
14
16
10
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

338101A1

CYLINDER

ASSY., Consists Of : 1-18

2шт.

1

NSS

NOT SOLD SEPARAT

NUT lock

1шт.

2

NSS

NOT SOLD SEPARAT

RING wear

2шт.

3

NSS

NOT SOLD SEPARAT

SEAL

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING

1шт.

5

348469A1

PISTON

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING

1шт.

7

338119A1

TUBE

BODY

1шт.

8

338137A1

STEM

ROD piston

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING

1шт.

10

NSS

NOT SOLD SEPARAT

RING backup

1шт.

11

348467A1

HEAD

cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER

1шт.

15

NSS

NOT SOLD SEPARAT

RING wear

1шт.

16

NSS

NOT SOLD SEPARAT

BUSHING

4шт.

17

NSS

NOT SOLD SEPARAT

PLUG

2шт.

18

NSS

NOT SOLD SEPARAT

O-RING

1шт.

352545A1

SEAL KIT

SEALS, Consists Of : 1-4,6,9,10,12-15,18

1шт.
