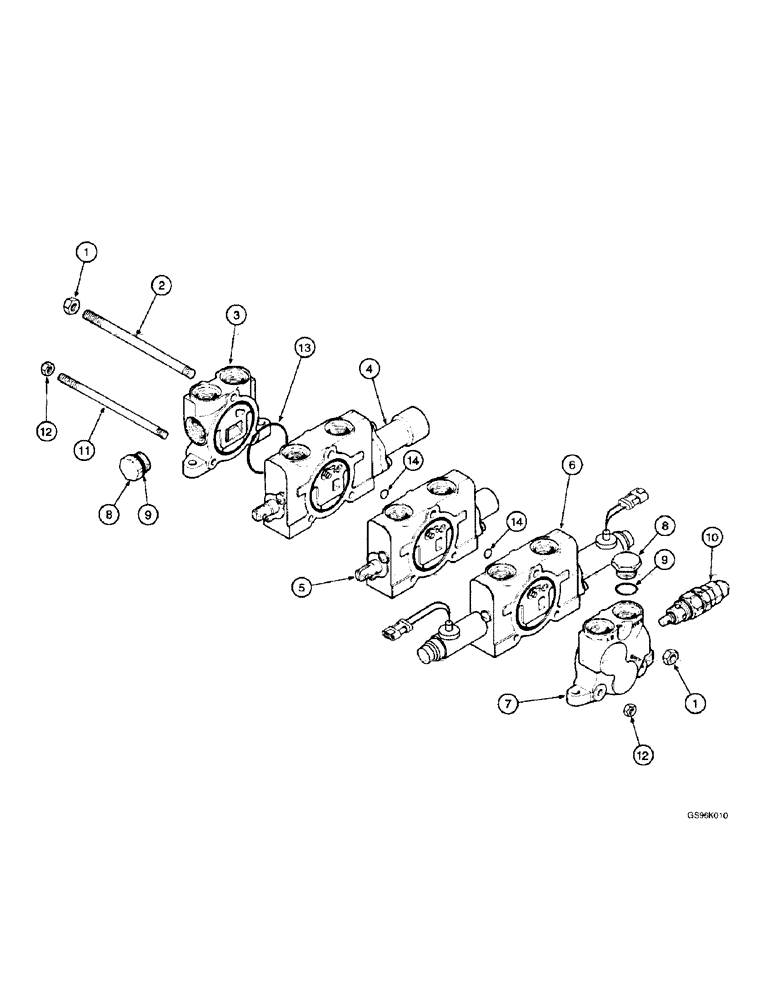

Запчасти Case IH L500 (8-068) - CONTROL VALVE - 3 FUNCTION (MX80 - MX100C) (08) - HYDRAULICS

252784A1

VALVE, CONTROL

ASSY. CONTROL, Consists Of : 1-14

1шт.

1

329-116

NUT,3/8"-24, G8

2шт.

2

1344728C1

TIE-ROD,3/8" - 24 x 7 5/8"

1шт.

3

105087A1

VALVE

SECTION inlet

1шт.

4

105078A1

KIT

SECTION ASSY., See Figure(s) : 8-64

1шт.

5

105084A1

SPOOL

SECTION ASSY., See Figure(s) : 8-66

1шт.

6

252785A1

VALVE BLOCK

SECTION ASSY., See Figure(s) : 8-70

1шт.

7

1344744C1

OUTLET

section

1шт.

8

86512512

PLUG,7/8" - 14 ORB

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

10

1344733C1

VALVE

relief

1шт.

11

1344726C1

TIE-ROD,5/16" - 18 x 7 1/2"

TIE ROD

2шт.

12

425-105

NUT,5/16"-18, G5

4шт.

13

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

4шт.

14

1344736C1

PLATE

2шт.
