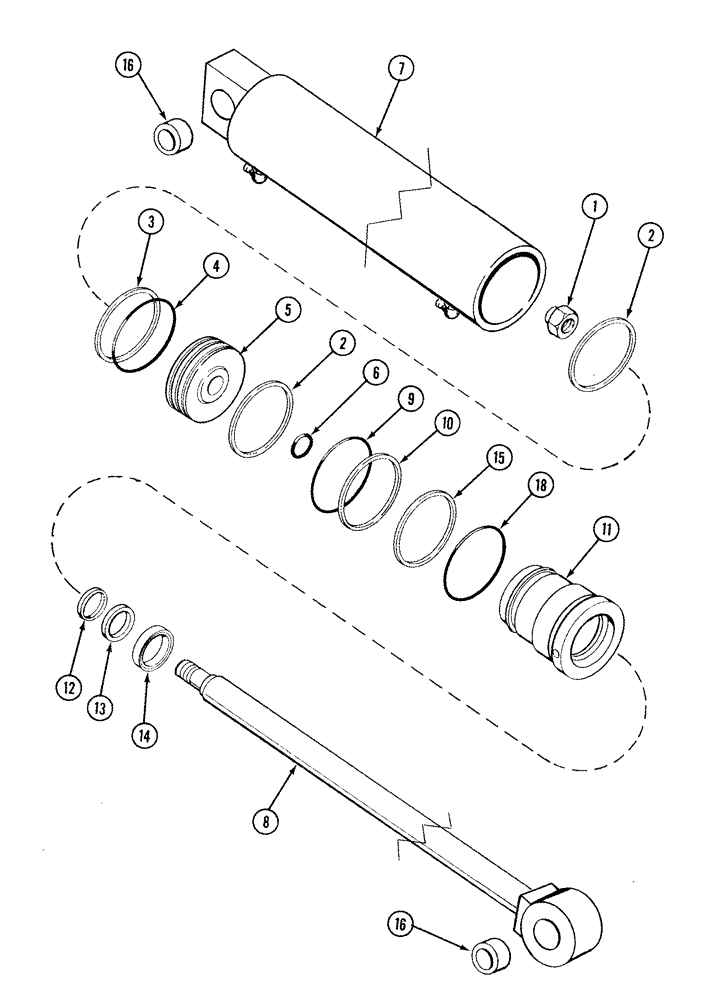

Запчасти Case IH L455 (08-19[02]) - CYLINDER ASSY BUCKET L455 (08) - HYDRAULICS

63.5 mm (2.5 in) ID x 445 mm (17.5 in) strk

1шт.

338099A2

CYLINDER,Double Acting, 38.1mm Rod, 444.5mm Stroke

63.5 ID x 445 mm strk, Consists Of 1-18

2шт.

1

NSS

NOT SOLD SEPARAT

Nut, Lock

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Wear

2шт.

3

NSS

NOT SOLD SEPARAT

Seal

1шт.

4

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

5

348468A1

PISTON

1шт.

6

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

7

NSS

NOT SOLD SEPARAT

Body

1шт.

8

338135A1

STEM

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

10

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

11

348466A1

HEAD

1шт.

12

NSS

NOT SOLD SEPARAT

Seal

1шт.

13

NSS

NOT SOLD SEPARAT

Seal

1шт.

14

NSS

NOT SOLD SEPARAT

Wiper

1шт.

15

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

16

NSS

NOT SOLD SEPARAT

Bushing

4шт.

17

NSS

NOT SOLD SEPARAT

Plug

2шт.

18

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

352546A1

SEAL KIT

Consists Of 1-4,6,9,10,12-15,18

1шт.
