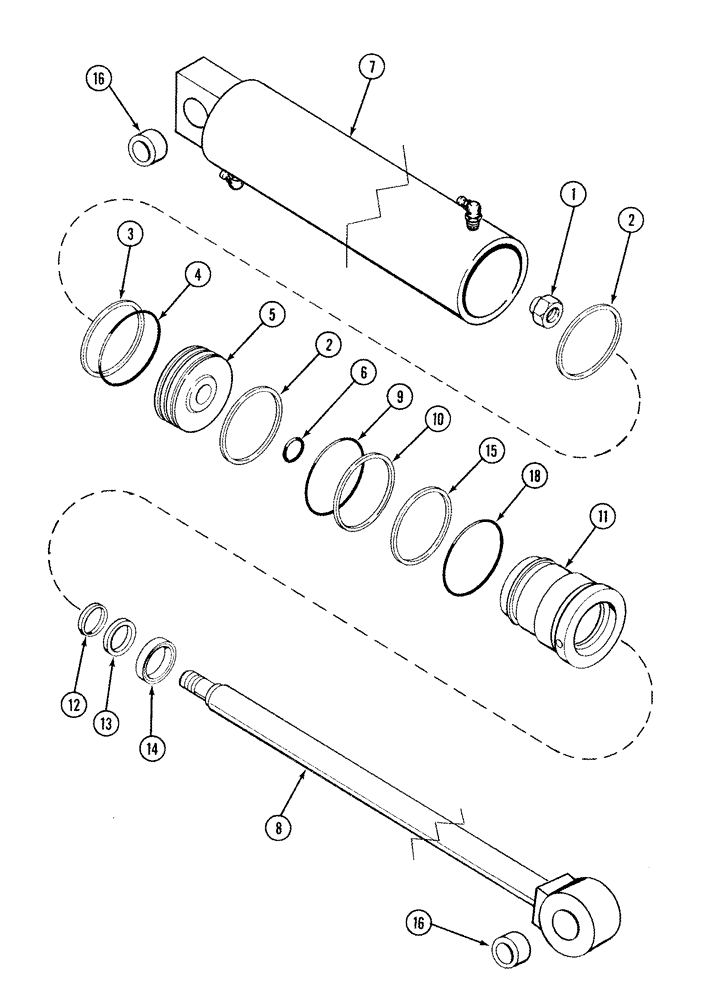

Запчасти Case IH L455 (08-18[02]) - CYLINDER ASSY LIFT L455 (08) - HYDRAULICS

70 mm (2.75 in) ID x515 mm (20.28 in) strk

1шт.

338098A2

CYLINDER

70 ID x 515 mm strk, Consists Of 1-18

2шт.

1

NSS

NOT SOLD SEPARAT

Nut, Lock

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Wear

2шт.

3

NSS

NOT SOLD SEPARAT

Seal

1шт.

4

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

5

348469A1

PISTON

1шт.

6

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

7

NSS

NOT SOLD SEPARAT

1/4 x 1, Body

1шт.

8

338134A1

STEM

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

10

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

11

348467A1

HEAD

1шт.

12

NSS

NOT SOLD SEPARAT

Seal

1шт.

13

NSS

NOT SOLD SEPARAT

Seal

1шт.

14

NSS

NOT SOLD SEPARAT

Wiper

1шт.

15

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

16

NSS

NOT SOLD SEPARAT

Bushing

4шт.

17

NSS

NOT SOLD SEPARAT

Plug

2шт.

18

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

352545A1

SEAL KIT

Consists Of 1-4,6,9,10,12-15,18

1шт.
