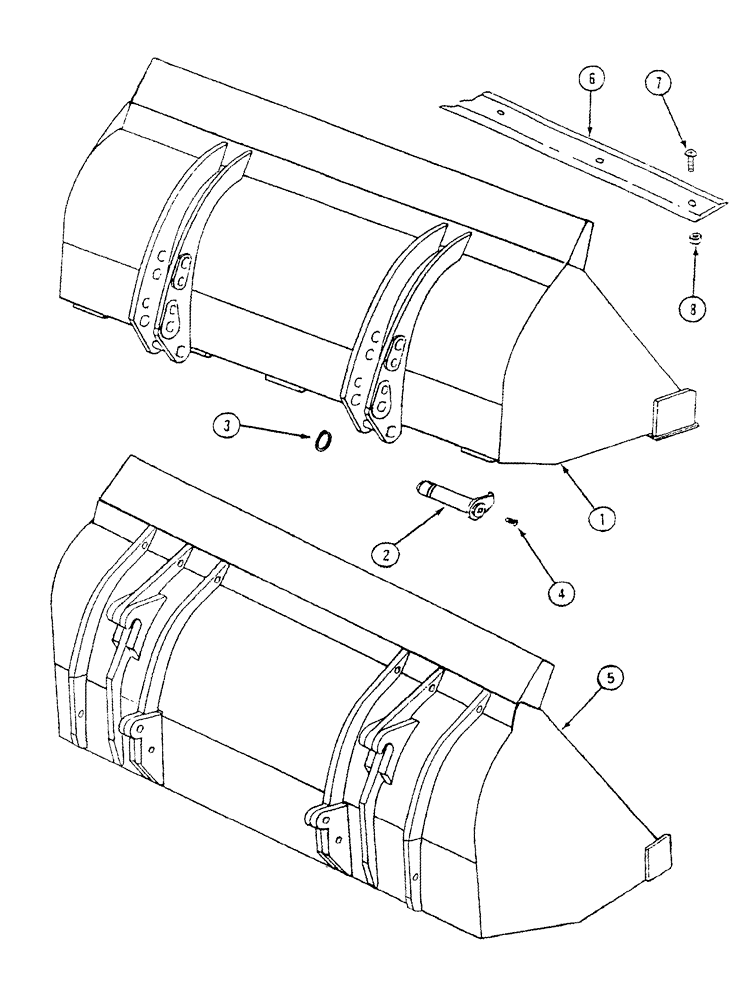

Запчасти Case IH L405 (09-07) - MATERIAL BUCKET HIGH CAPACITY (09) - CHASSIS/ATTACHMENTS

Standard Attach Type

1шт.

1

320819A1

BUCKET

60 in

1шт.

2

349057A1

PIN

4шт.

3

103-16125

SNAP RING,#125, Ext

4шт.

4

219-14

LUBE NIPPLE,1/4" NPTF

8шт.

Quick Attach Type

1шт.

5

320816A1

BUCKET

60 in

1шт.

6

323001A1

EDGE, CUTTING

60 in

1шт.

7

420-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

3/4 x 2-1/4 in

1шт.

8

429-1012

NUT,3/4"-10, G8

1шт.
