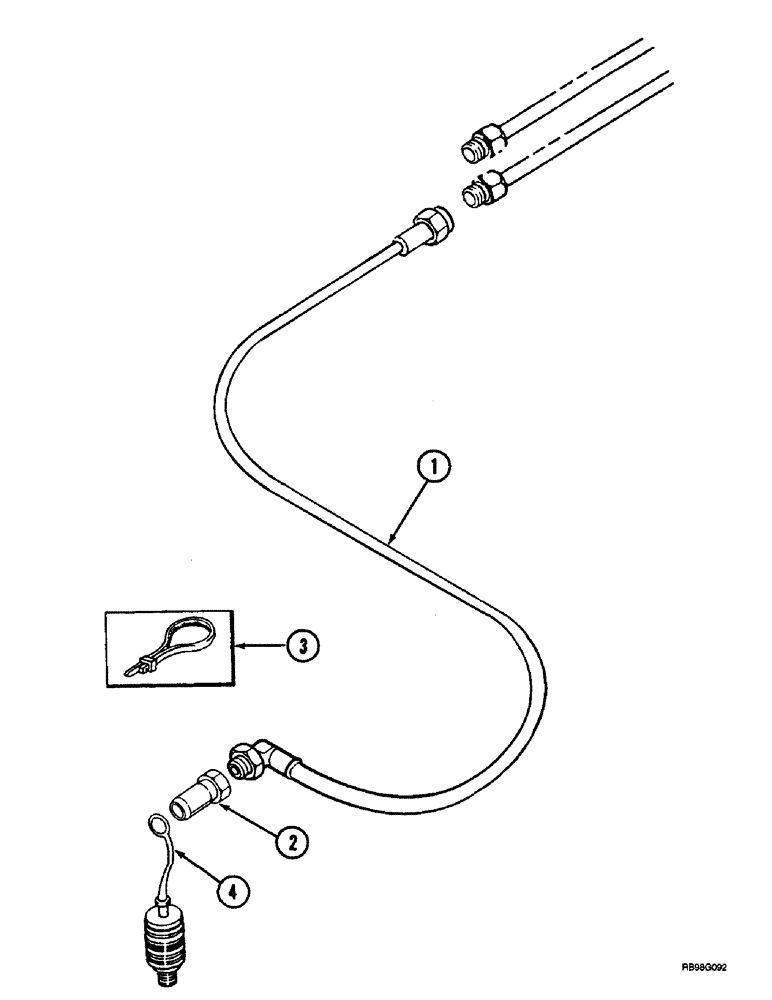

Запчасти Case IH L400 (8-06) - HYDRAULICS, REAR MOUNT, C/CX50, C/CX60 (08) - HYDRAULICS

1

327202A2

HOSE

4623 mm (182 in.)

4шт.

2

1272399C2

QUICK MALE COUPLING

7/8 NF, self-sealing, male

4шт.

3

306132C1

CABLE TIE,14.5" L

14 in.

4шт.

4

327227A1

CAP

PLUG female, blue

1шт.

Blue p/n 333717A1

1шт.

4

327228A1

CAP

PLUG female, orange

1шт.

4

327229A1

CAP

PLUG female yellow

1шт.

Yellow p/n 333719A1

1шт.

4

327230A1

CAP

PLUG female, black

1шт.

4

327231A1

CAP

PLUG female, red

1шт.

Red p/n 333721A1

1шт.

4

327232A1

CAP

PLUG female, green

1шт.

Green p/n 333722A1

1шт.

These are the colored caps to cover the female end of the quick connect. The colored caps to cover the male ends of the quick connect are as follows:

1шт.
