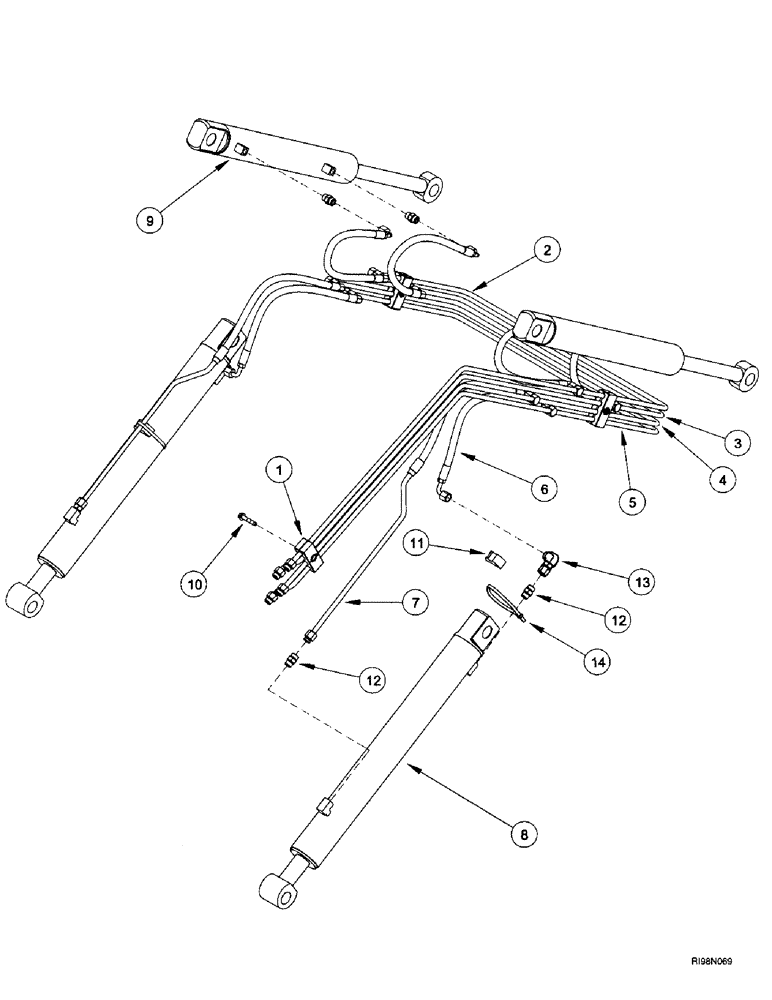

Запчасти Case IH L400 (8-02) - HYDRAULICS, LOADER FRAME (08) - HYDRAULICS

1

324067A1

BRACKET

6шт.

2

324909A2

HYD TUBE

1шт.

3

324910A2

HYD TUBE

1шт.

4

324911A2

HYD TUBE

1шт.

5

324912A2

HYD TUBE

1шт.

6

346111A1

HOSE

559 mm (22 in.)

8шт.

7

324951A2

HYD TUBE

2шт.

8

338096A1

CYLINDER

ASSY., 64 ID x 499 mm strk #L400 (2) Boom See Figure: 8-48

1шт.

8

338098A1

CYLINDER

ASSY., 70 ID x 515 mm strk #L450 (2) Boom See Figure : 8-50

1шт.

9

338097A1

CYLINDER

ASSY., 63.5 ID x 400 mm strk #L400 (2) Bucket See Figure: 8-52

1шт.

9

338099A1

CYLINDER

ASSY., 63.5 ID x 445 mm strk #L450 (2) Bucket See Figure: 8-54

1шт.

10

281-54932

SCREW,Hex Wshr Hd, 3/8" - 16 x 2"

3шт.

11

D38648

BLOCK

saddle

2шт.

12

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

CONNECTOR, HYD., 13/16"-16 ORFS x 3/4"-16 ORB

8шт.

13

201-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

90

2шт.

14

386170C1

CABLE TIE,.30" x 27 1/2"

711 mm (28 in.)

2шт.
