(9-14) - MATERIAL BUCKET, HIGH CAPACITY

Запчасти Case IH L400 (9-14) - MATERIAL BUCKET, HIGH CAPACITY (09) - CHASSIS/ATTACHMENTS

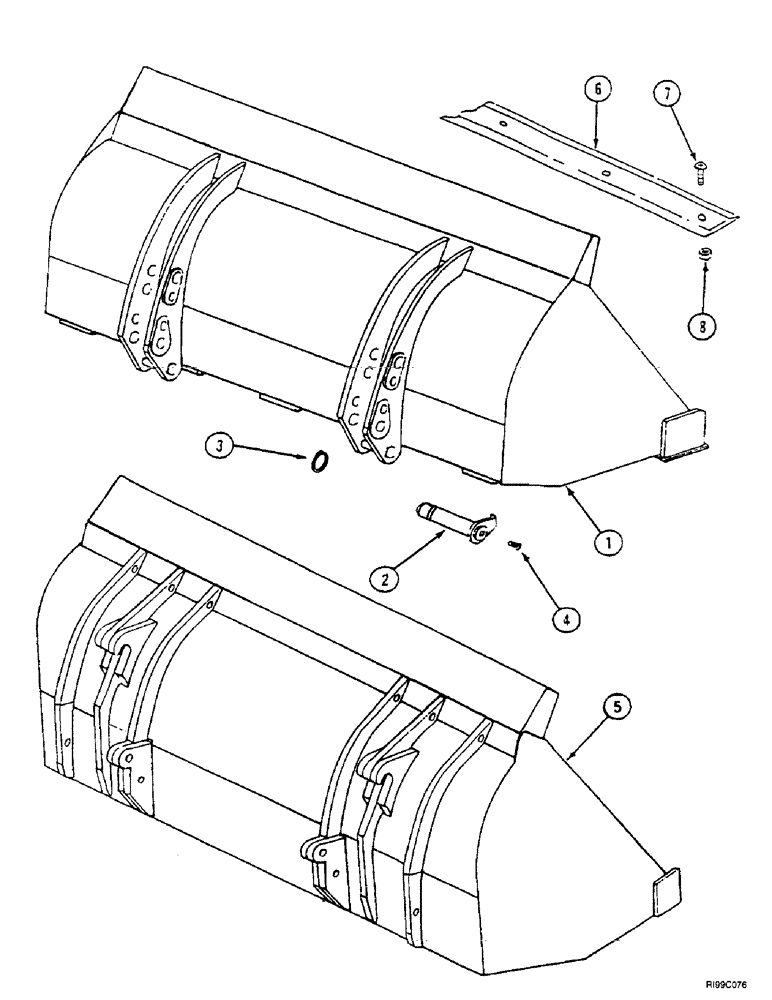

Схема запчастей Case IH L400 - (9-14) - MATERIAL BUCKET, HIGH CAPACITY (09) - CHASSIS/ATTACHMENTS
2
5
6
3
1
4
8
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

320819A1

BUCKET

60 in.

1шт.

2

349057A1

PIN

4шт.

3

103-16125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

4шт.

4

219-14

LUBE NIPPLE,1/4" NPTF

8шт.

5

320816A1

BUCKET

60 in. quick attach type

1шт.

6

323001A1

EDGE, CUTTING

60 in. quick attach type

1шт.

7

420-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

3/4 x 2-1/4 in. quick attach type

1шт.

8

429-1012

NUT,3/4"-10, G8

Quick attach type 3/4"-10, G8

1шт.
