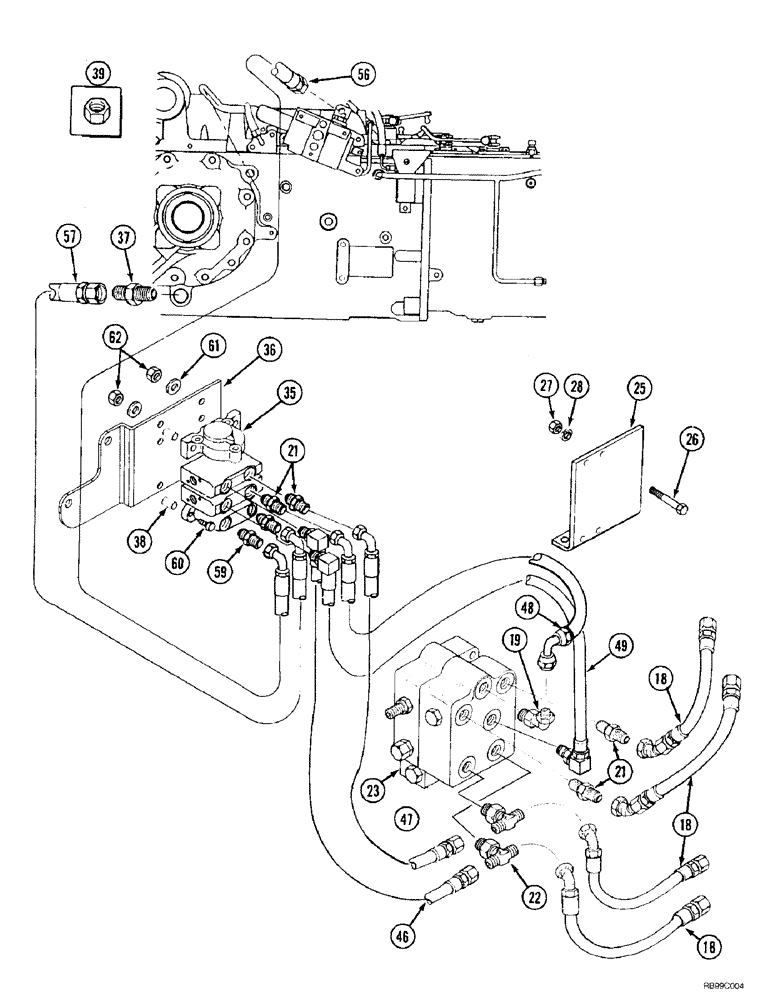

Запчасти Case IH L400 (8-66) - HYDRAULICS, EXTERNAL VALVE, 2 FUNCTION C50, C60, WITH SELF LEVELING (08) - HYDRAULICS

18

327219A1

HOSE ASSY.

559 mm (22 in.)

4шт.

19

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj. 90º, 7/8"-14, 37º x 7/8"-14, O-Ring

1шт.

21

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or

4шт.

22

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

2шт.

23

328000A1

VALVE

self level

1шт.

25

327225A2

SHEET

PLATE

1шт.

26

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

27

425-105

NUT,5/16"-18, G5

2шт.

28

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

35

REF

INSTRUCTION

VALVE ASSY., control See Figure : 8-41

1шт.

36

252390A2

SHEET

BRACKET

1шт.

37

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

1шт.

38

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

3/8 ID x 1

4шт.

39

218-756

CAP,37 Degree, 7/8"-14

1шт.

46

327217A1

HOSE ASSY.

222 mm (8.75 in.)

1шт.

47

327200A1

HOSE ASSY.

311 mm (12.25 in.)

1шт.

48

327218A1

HOSE ASSY.

483 mm (19 in.)

1шт.

49

327209A1

HOSE ASSY.

368 mm (14.5 in.)

1шт.

56

321983A1

HOSE ASSY.

864 mm (34 in.) Supply

1шт.

57

321981A1

HOSE ASSY.

635 mm (25 in.) Return

1шт.

59

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

CONNECTOR, HYD., 1"-14 ORFS x 7/8"-14 ORB

2шт.

201-103 CONNECTOR, 5/8 ORFS-ORB 5/8

1шт.

60

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

61

492-11038

LOCK WASHER,3/8"

4шт.

62

425-106

NUT,3/8"-16, Cl 5

4шт.

637-63193 O-RING, 2.2W x 19.3 IDMM CL 6

1шт.

238-6016 O-RING, 5/8 x 3/4 CLASS 6

1шт.

700-103 CONNECTOR, 16MM ORFS x M22 ORB

1шт.

238-6016 S O-RING, 5/8 x 3/4 CLASS 6

1шт.

237-6010 S O-RING, 5/8 OD TUBE CLASS 6

1шт.
