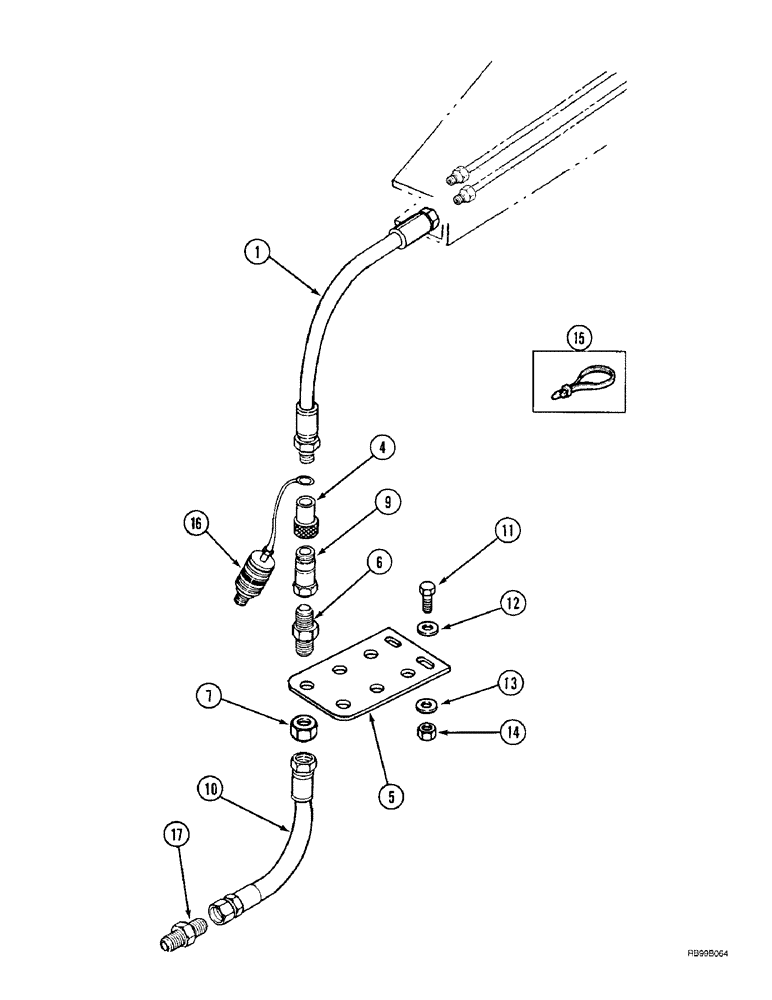

Запчасти Case IH L400 (8-64) - HYDRAULICS, EXTERNAL VALVE, 2 FUNCTION C50, C60, WITH SELF LEVELING (08) - HYDRAULICS

1

327197A2

HOSE

1524 mm (60 in.)

4шт.

4

1272400C1

COUPLING

female

4шт.

5

327223A1

PLATE

1шт.

6

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

4шт.

7

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

4шт.

9

1272399C2

QUICK MALE COUPLING

7/8 NF, self-sealing, male

4шт.

10

357380A1

HOSE ASSY.

1168 mm (46 in.)

4шт.

11

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

12

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

15

306132C1

CABLE TIE,14.5" L

14 in.

3шт.

17

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

continued

4шт.
