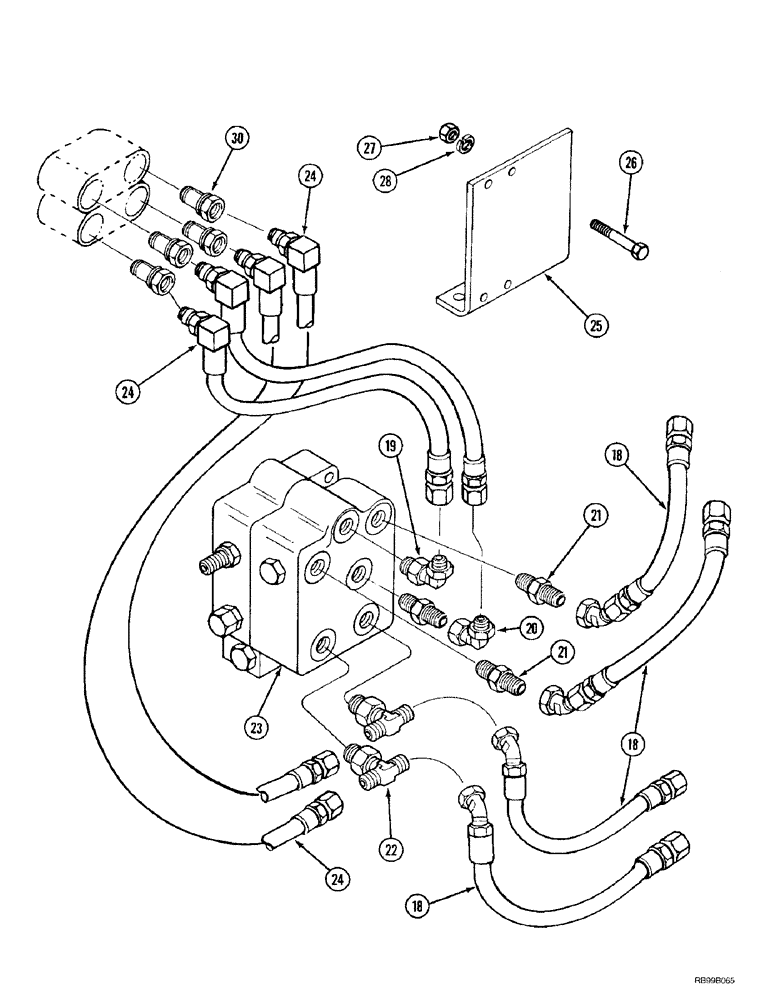

Запчасти Case IH L400 (8-58) - HYDRAULICS, MID MOUNT, 2 FUNCTION C50, C60, WITH SELF LEVELING (08) - HYDRAULICS

18

327219A1

HOSE ASSY.

559 mm (22 in.)

4шт.

19

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj. 90º, 7/8"-14, 37º x 7/8"-14, O-Ring

1шт.

20

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

21

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or

3шт.

22

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

2шт.

23

328000A1

VALVE

self level

1шт.

24

357390A1

HOSE ASSY.

1676 mm (66 in.)

4шт.

25

327225A2

SHEET

PLATE

1шт.

26

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

27

425-105

NUT,5/16"-18, G5

2шт.

28

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

30

1272399C2

QUICK MALE COUPLING

7/8 NF, self-sealing, male

4шт.
