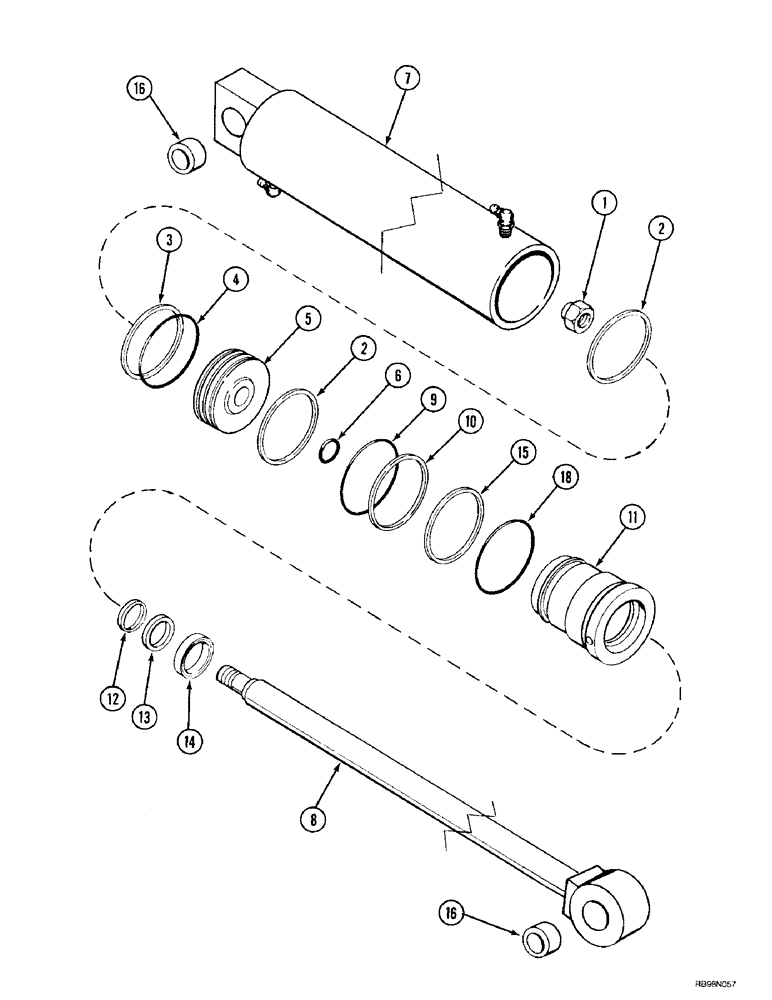

Запчасти Case IH L400 (8-50) - CYLINDER ASSY, LIFT, L450, 70 MM (2.75 INCH) ID X 515 MM (20.28 INCH) STRK (08) - HYDRAULICS

338098A1

CYLINDER

ASSY., 70 ID x 515 mm strk Consists Of : 1-18

2шт.

1

NSS

NOT SOLD SEPARAT

NUT lock

1шт.

2

NSS

NOT SOLD SEPARAT

RING wear

2шт.

3

NSS

NOT SOLD SEPARAT

SEAL

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING

1шт.

5

348469A1

PISTON

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING

1шт.

7

338116A1

TUBE

BODY

1шт.

8

338134A1

STEM

ROD piston

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING

1шт.

10

NSS

NOT SOLD SEPARAT

RING backup

1шт.

11

348467A1

HEAD

cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER

1шт.

15

NSS

NOT SOLD SEPARAT

RING wear

1шт.

16

NSS

NOT SOLD SEPARAT

BUSHING

4шт.

17

NSS

NOT SOLD SEPARAT

PLUG

2шт.

18

NSS

NOT SOLD SEPARAT

O-RING

1шт.

352545A1

SEAL KIT

SEALS Consists Of : 1-4, 6, 9, 10, 12-15 and 18

1шт.
