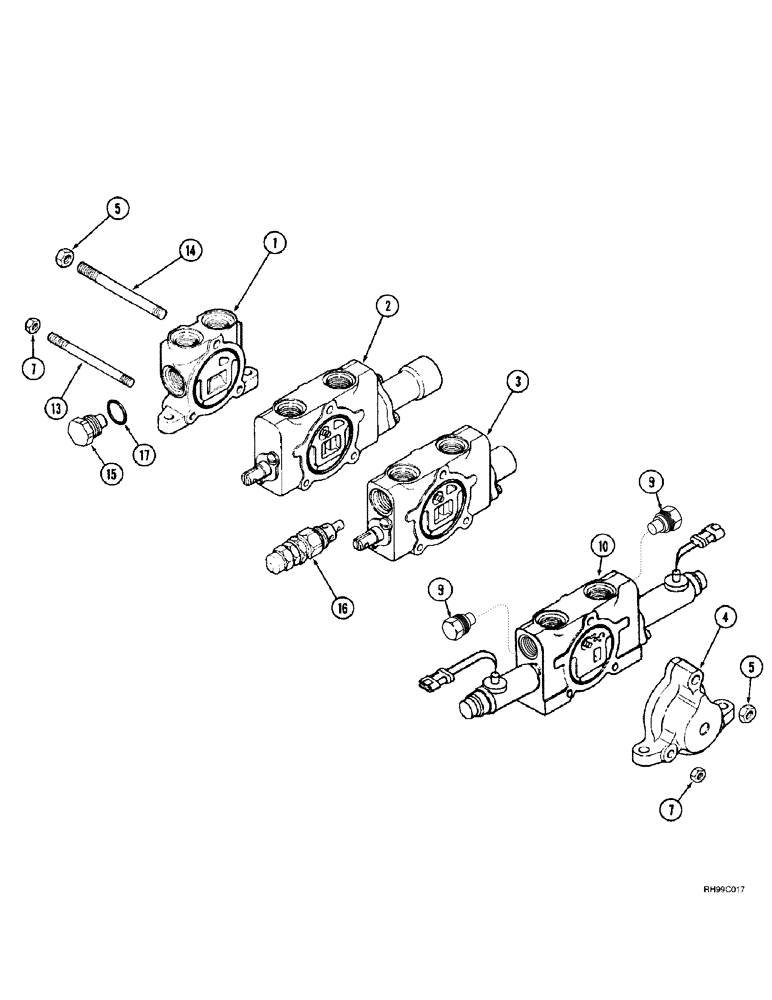

Запчасти Case IH L400 (8-46) - CONTROL VALVE, 3 FUNCTION (08) - HYDRAULICS

246994A1

VALVE

ASSY. Control Consists Of : 1 - 17

1шт.

1

105087A1

VALVE

SECTION

1шт.

2

123119A1

BOOM

SECTION ASSY. See Figure : 8-42

1шт.

3

123120A1

SPOOL

SECTION ASSY. See Figure: 8-44

1шт.

4

S234401

OUTLET

SECTION

1шт.

5

329-116

NUT,3/8"-24, G8

2шт.

7

425-105

NUT,5/16"-18, G5

4шт.

9

1344731C1

PLUG

1шт.

10

252787A1

VALVE

SECTION See Figure : 8-46A

1шт.

13

1344726C1

TIE-ROD,5/16" - 18 x 7 1/2"

5/16 x 7-1/2

2шт.

14

1344728C1

TIE-ROD,3/8" - 24 x 7 5/8"

3/8 x 7-5/8

1шт.

15

86512512

PLUG,7/8" - 14 ORB

1шт.

16

1985094C1

VALVE

relief

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.
