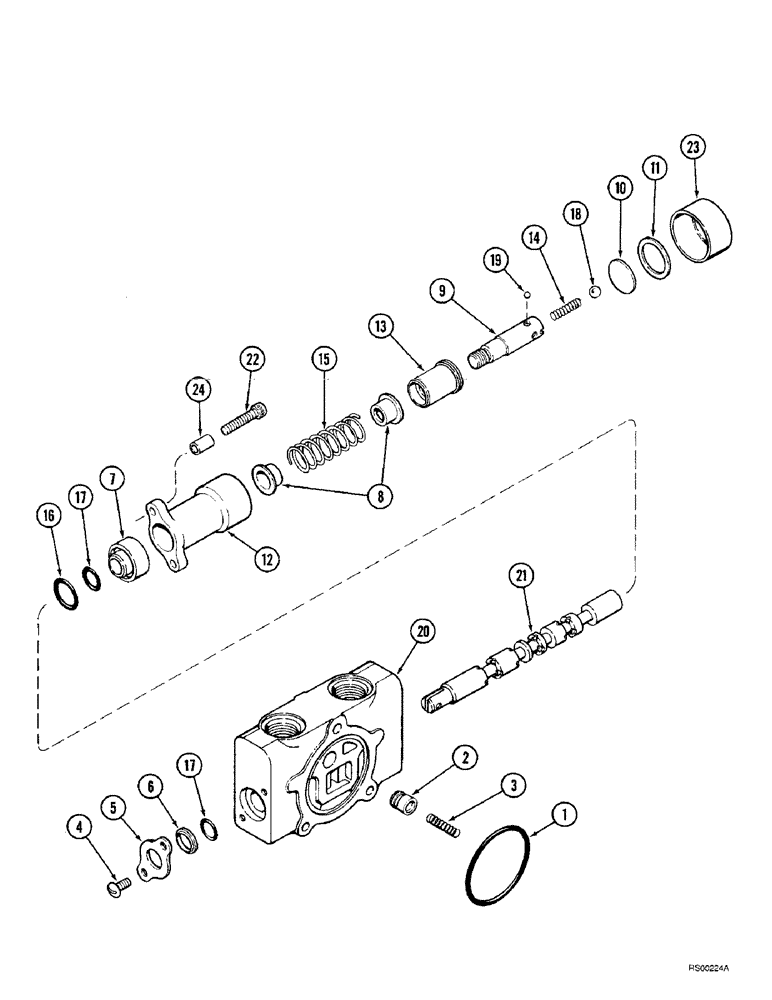

Запчасти Case IH L400 (8-42) - VALVE SECTION, LIFT (08) - HYDRAULICS

123119A1

BOOM

SECTION ASSY. Consists Of : 1 - 24

1шт.

1

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2шт.

2

S111864

VALVE POPPET

1шт.

3

890615C1

SPRING

1шт.

4

470-1256

SCREW,Slotted Pan Hd, 1/4"-20 x 3/8"

2шт.

5

S111865

PLATE

2шт.

6

S111870

OIL SCRAPER RING

SEAL

2шт.

7

1346860C1

SPACER

CAP

1шт.

8

S111866

SEAT

2шт.

9

1985093C1

SPOOL

1шт.

10

1344719C1

PLATE

1шт.

11

1344715C1

RING

retaining

1шт.

12

1344724C1

CAP

1шт.

13

105082A1

SLEEVE

1шт.

14

1344718C1

SPRING

1шт.

15

1344735C1

SPRING

1шт.

16

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

1шт.

17

1344740C1

O-RING,0.103" Thk x 0.549" ID, -113, 60 Duro

2шт.

18

211-1010

BALL,5/16" OD

5/16; 24,CRS

1шт.

19

211-1007

BALL,7/32" Dia

Gr 24, CRS 7/32" Dia

4шт.

20

NSS

NOT SOLD SEPARAT

BODY

1шт.

21

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

22

61-32520

HEX SOC SCREW,1/4"-20 x 1 1/4"

socket 1/4 x 1-1/4

2шт.

23

1540123C1

COVER

1шт.

24

1346861C1

SPACER

2шт.
