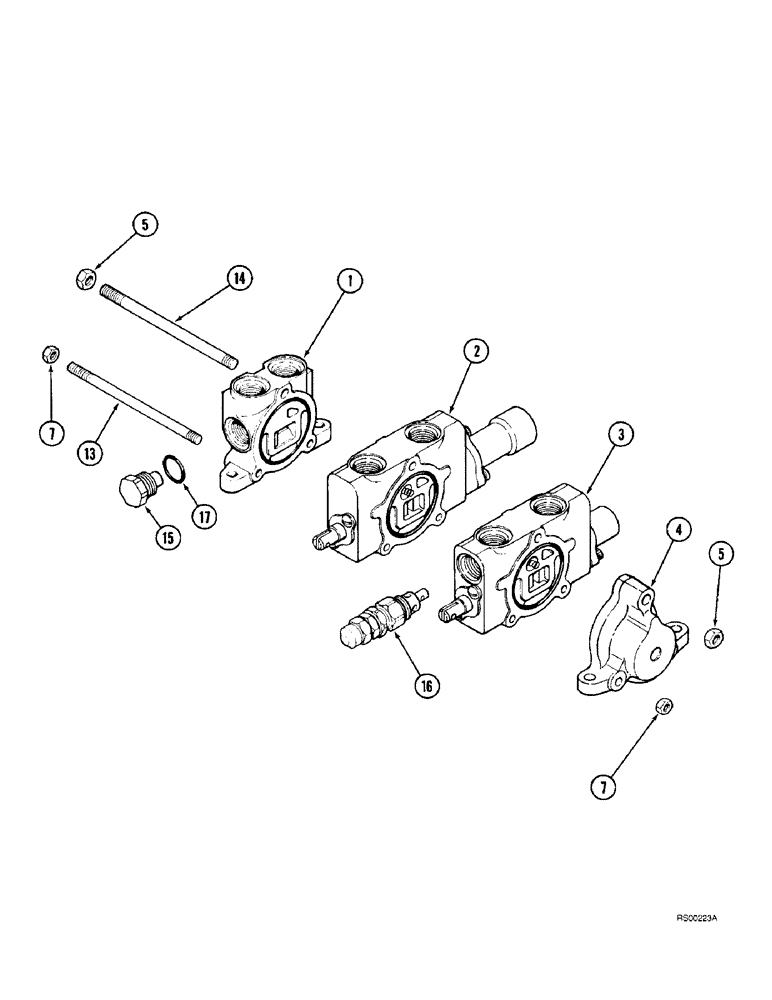

Запчасти Case IH L400 (8-40) - CONTROL VALVE, 2 FUNCTION (08) - HYDRAULICS

123118A1

VALVE

ASSY., control Consists Of : 1 - 17

1шт.

1

105087A1

VALVE

SECTION

1шт.

2

REF

INSTRUCTION

SECTION ASSY. See Figure : 8-42

1шт.

3

REF

INSTRUCTION

SECTION ASSY. See Figure : 8-44

1шт.

4

S234401

OUTLET

SECTION

1шт.

5

329-116

NUT,3/8"-24, G8

2шт.

7

425-105

NUT,5/16"-18, G5

4шт.

13

1344725C1

TIE-ROD,5/16" - 18 x 6"

5/16 x 6

2шт.

14

1344727C1

TIE-ROD,3/8" - 24 x 6 1/8"

ROD tie, 3/8 x 6-1/8

1шт.

15

86512512

PLUG,7/8" - 14 ORB

1шт.

16

1985094C1

VALVE

relief

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.
