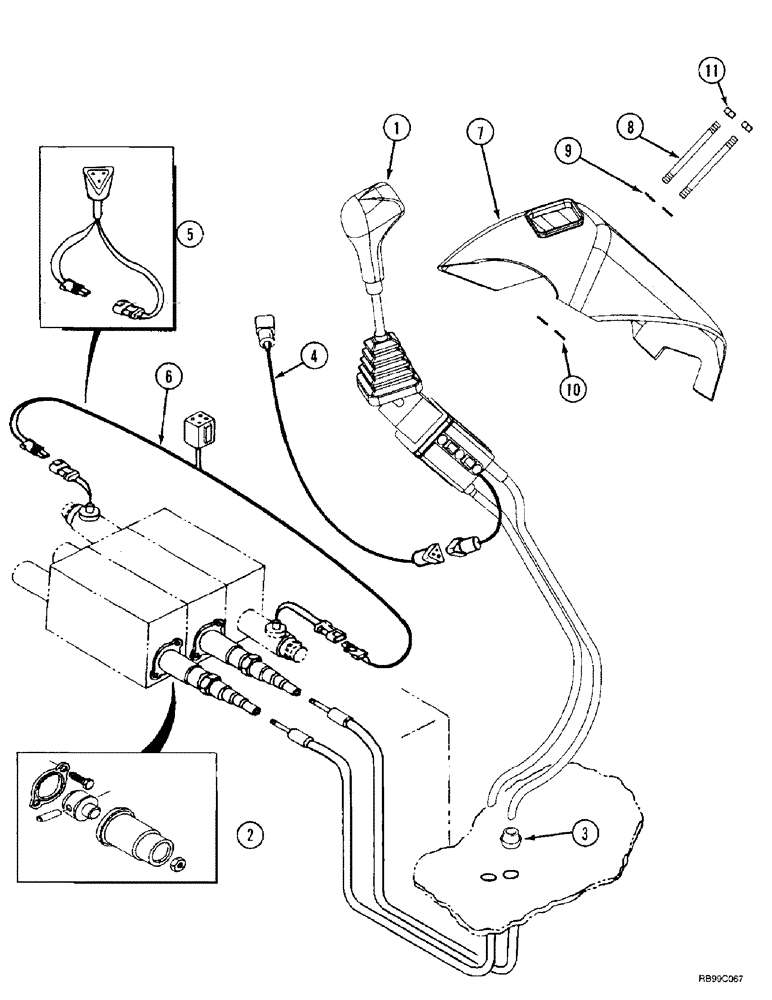

Запчасти Case IH L400 (8-32) - HYDRAULIC CONTROLS, COVER, 3 FUNCTION CX50, CX60 (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROLLER See Figure : 8-34

1шт.

2

252798A1

SET OF PARTS

ADAPTER

2шт.

3

182045A1

GROMMET

2шт.

4

246904A1

HARNESS

1шт.

5

327852A2

HARNESS

, Serial Range: -JEE1008215

1шт.

6

309775A1

HARNESS

, Start Serial: JEE1008215

1шт.

7

279785A3

COVER

For Platform Tractor Shown

1шт.

7

257605A4

COVER

For Straddle Tractor Not Illustrated

1шт.

8

321218A1

STUD

2шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.
