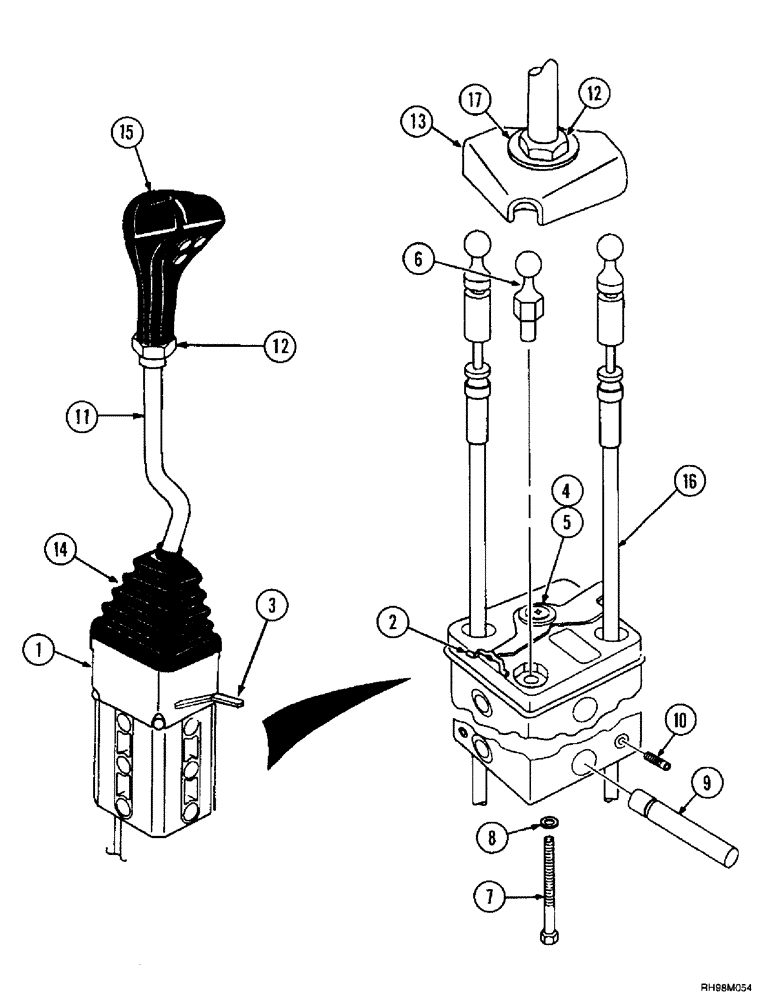

Запчасти Case IH L400 (8-26) - CONTROL ASSEMBLY, 2 FUNCTION, CX50, CX60 (08) - HYDRAULICS

246991A3

LEVER

controller Consists Of : 1-17

1шт.

The 246991A 3 per the prints does not include the upper housing.

1шт.

1

247713A1

BODY

HOUSING

1шт.

2

258464A1

SPRING LOCK

1шт.

3

302704A1

LEVER

1шт.

4

760-34495

SELF-TAP SCREW,Pan, M4.8 x 1.6 x 9.5mm

M4.8 x 9.5

1шт.

5

495-31022

WASHER,#10

1шт.

6

253277A1

BALL JOINT

PIVOT

1шт.

7

814-6080

BOLT,Hex, M6 x 1 x 80mm, Cl 8.8

1шт.

8

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

9

254284A1

TUBE,9 mm ID, 12 mm OD, 65.5 mm Length

2шт.

10

877-20810

SET SCREW,Hex Skt, M8 x 10mm, Cone Pt

SET M8 x 10

2шт.

11

302705A3

LEVER

1шт.

12

829-23414

THIN NUT,Thin, M14 x 1.5, Cl 05

2шт.

13

253276A1

COUPLING FLANGE

YOKE

1шт.

14

253274A1

BELLOWS

BOOT

1шт.

15

246982A1

CONTROL

HANDLE ASSY. Includes : 15A

1шт.

15a

253280A1

PLASTIC PLUG

2шт.

16

253271A1

CABLE ASSY.

2шт.

17

895-15014

WASHER,15.5mm ID x 30mm OD x 2.5mm Thk

15.5 x 30 x 2.5 mm

1шт.
