(8-24) - HYDRAULIC CONTROLS, COVER, 2 FUNCTION CX50, CX60

Запчасти Case IH L400 (8-24) - HYDRAULIC CONTROLS, COVER, 2 FUNCTION CX50, CX60 (08) - HYDRAULICS

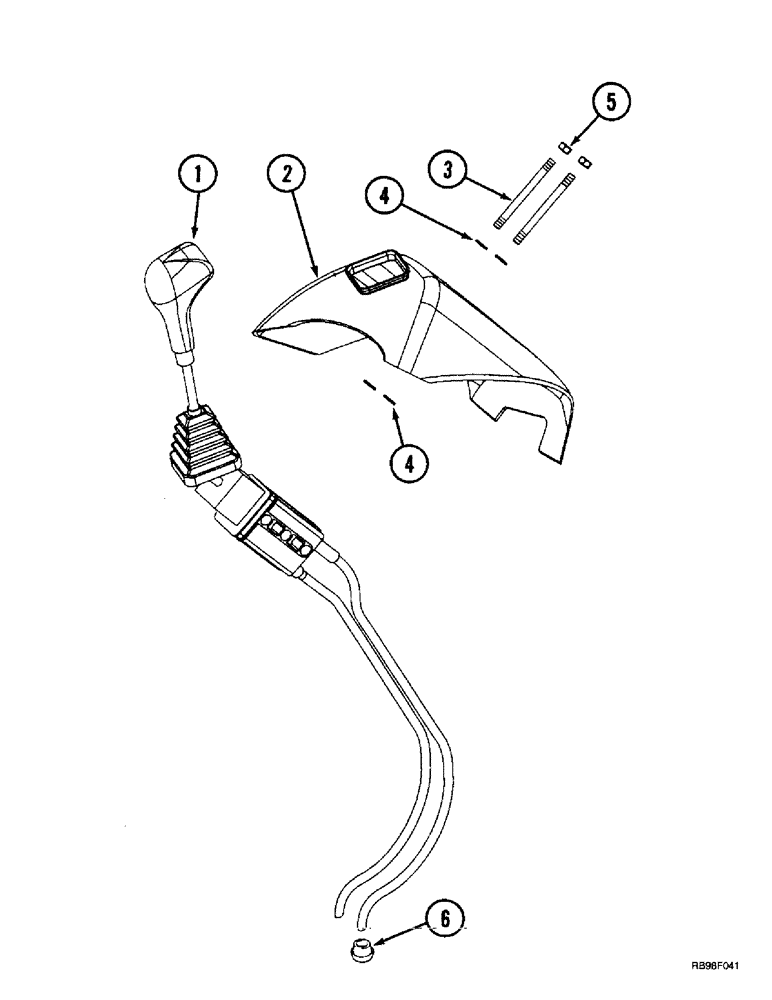

Схема запчастей Case IH L400 - (8-24) - HYDRAULIC CONTROLS, COVER, 2 FUNCTION CX50, CX60 (08) - HYDRAULICS
1
6
4
2
3
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CONTROLLER See Figure : 8-26

1шт.

2

279785A3

COVER

For Tractors Without Cab Shown

1шт.

2

257605A4

COVER

For Tractors With Cab Not Illustrated

1шт.

3

321218A1

STUD

2шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

5

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

6

182045A1

GROMMET

2шт.

7

319965A1

LINING

Trim For Tractors With Cab Not Illustrated

1шт.
