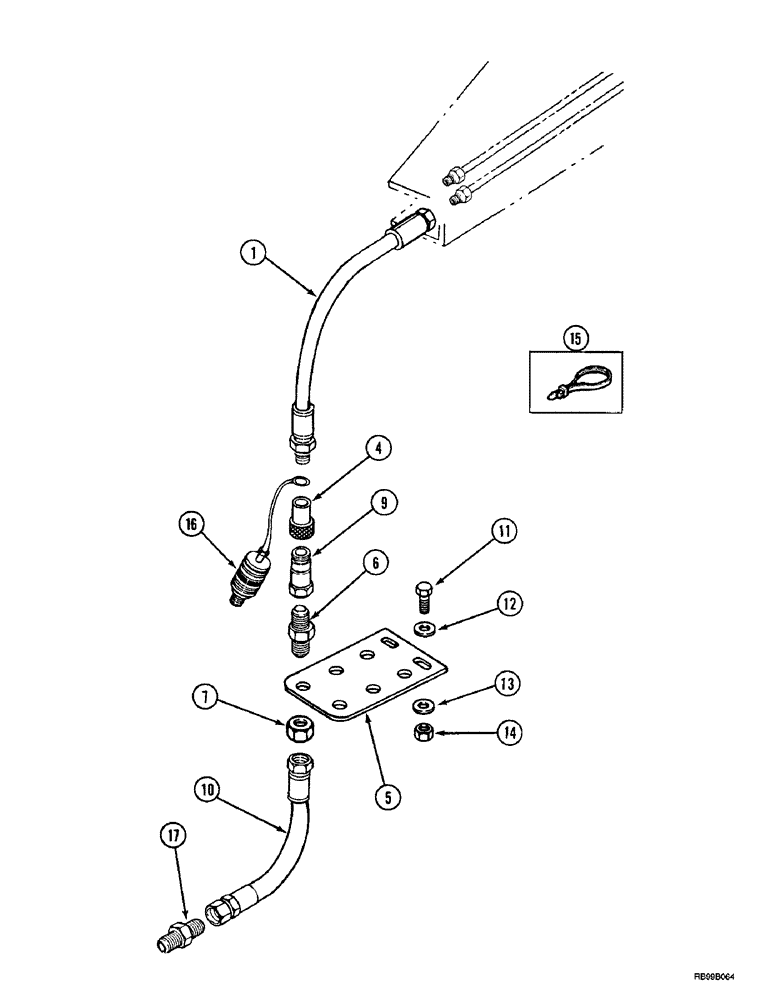

Запчасти Case IH L400 (8-12) - HYDRAULICS, EXTERNAL VALVE, 2 FUNCTION C50, C60, WITHOUT SELF LEVELING (08) - HYDRAULICS

1

327197A2

HOSE

1524 mm (60 in.)

4шт.

4

1272400C1

COUPLING

female

4шт.

5

327223A1

PLATE

1шт.

6

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

4шт.

7

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

4шт.

9

1272399C2

QUICK MALE COUPLING

7/8 NF, self-sealing, male

4шт.

10

357380A1

HOSE ASSY.

1168 mm (46 in.)

4шт.

11

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

12

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

15

306132C1

CABLE TIE,14.5" L

14 in.

4шт.

16

327227A1

CAP

PLUG blue

1шт.

Blue p/n 333717A1

1шт.

16

327229A1

CAP

PLUG yellow

1шт.

Yellow p/n 333719A1

1шт.

16

327231A1

CAP

PLUG red

1шт.

Red p/n 333721A1

1шт.

16

327232A1

CAP

PLUG green

1шт.

Green p/n 333722A1

1шт.

These are the colored caps to cover the female end of the quick connect. The colored caps to cover the male ends of the quick connect are as follows:

1шт.

17

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

continued

4шт.

21

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or

2шт.

35

REF

INSTRUCTION

VALVE ASSY., control See Figure : 8-41

1шт.

36

252390A2

SHEET

BRACKET

1шт.

37

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

1шт.

38

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

3/8 ID x 1

4шт.

39

218-756

CAP,37 Degree, 7/8"-14

1шт.

56

321983A1

HOSE ASSY.

864 mm (34 in.) Supply

1шт.

57

321981A1

HOSE ASSY.

635 mm (25 in.) Return

1шт.

59

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

CONNECTOR, HYD., 1"-14 ORFS x 7/8"-14 ORB

2шт.

201-103 CONNECTOR, 5/8 ORFS-ORB 5/8

1шт.

60

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

61

492-11038

LOCK WASHER,3/8"

4шт.

62

425-106

NUT,3/8"-16, Cl 5

4шт.

63

357374A1

HOSE ASSY.

356 mm (14 in.)

2шт.

64

357375A1

HOSE ASSY.

356 mm (14 in.)

2шт.

637-63193 O-RING, 2.2W x 19.3 IDMM CL 6

1шт.

238-6016 O-RING, 5/8 x 3/4 CLASS 6

1шт.

700-103 CONNECTOR, 16MM ORFS x M22 ORB

1шт.

238-6016 S O-RING, 5/8 x 3/4 CLASS 6

1шт.

237-6010 S O-RING, 5/8 OD TUBE CLASS 6

1шт.
