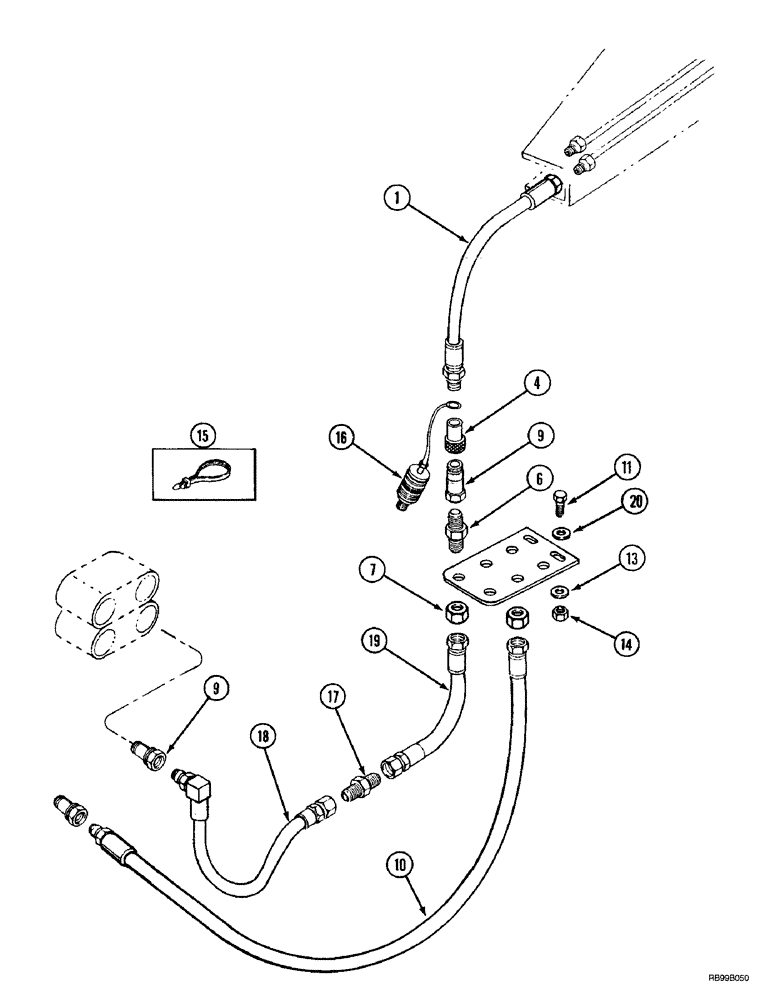

Запчасти Case IH L400 (8-10) - HYDRAULICS, MID MOUNT, 3 FUNCTION C/CX50, C/CX60, WITHOUT SELF LEVELING (08) - HYDRAULICS

1

327197A2

HOSE

1524 mm (60 in.)

6шт.

4

1272400C1

COUPLING

female

6шт.

5

327223A1

PLATE

1шт.

6

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

6шт.

7

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

6шт.

9

1272399C2

QUICK MALE COUPLING

7/8 NF, self-sealing, male

12шт.

10

327206A1

HOSE ASSY.

3099 mm (122 in.) Third Remote

2шт.

11

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

15

306132C1

CABLE TIE,14.5" L

14 in.

3шт.

16

327227A1

CAP

PLUG female, blue

1шт.

Blue p/n 333717A1

1шт.

16

327229A1

CAP

PLUG female, yellow

1шт.

Yellow p/n 333719A1

1шт.

16

327231A1

CAP

PLUG female, red

1шт.

Red p/n 333721A1

1шт.

16

327232A1

CAP

PLUG female, green

1шт.

Green p/n 333722A1

1шт.

These are the colored caps to cover the female end of the quick connect. The colored caps to cover the male ends of the quick connect are as follows:

1шт.

17

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

4шт.

18

357390A1

HOSE ASSY.

1676 mm (66 in.) First and Second Remote

4шт.

19

357380A1

HOSE ASSY.

1168 mm (46 in.) #C50 - C60 (4)

1шт.

19

357382A1

HOSE ASSY.

1422 mm (56 in.) #CX50 - CX60 (4)

1шт.

20

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.
