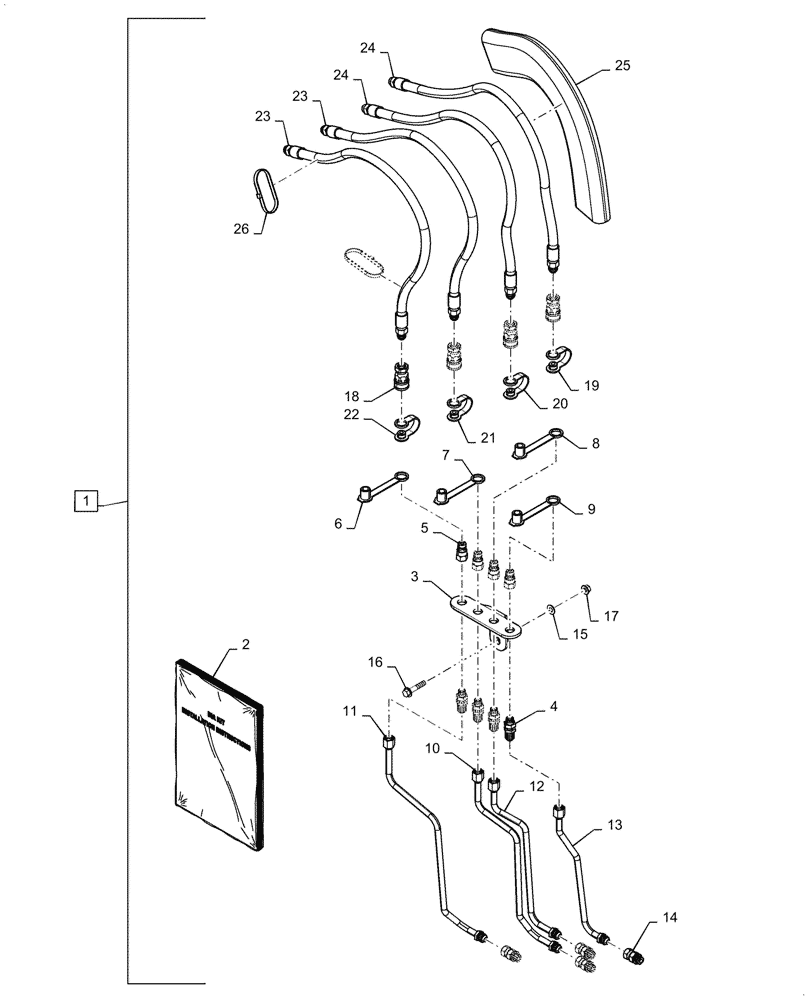

Запчасти Case IH L360A (88.100.35[03]) - MID MOUNT VALVE KIT, PLUMBING (88) - ACCESSORIES

1

48076106

Mid Mount Valve, Plumbing, Incl 2 - 26

KIT

1шт.

2

48076256

MMV, Plumbing

INSTRUCTION

1шт.

3

48053149

BRACKET

1шт.

4

86532865

ADAPTER

Male Adapter

4шт.

5

9846344

QUICK MALE COUPLING,3/8" NPTF

4шт.

6

86597751

DUST CAP,23mm OD x 255mm L

Blue

1шт.

7

86597750

DUST CAP,23mm OD x 255mm L

Red

1шт.

8

86597752

DUST CAP,23mm OD x 255mm L

Green

1шт.

9

86597753

DUST CAP,23mm OD x 255mm L

Yellow

1шт.

10

48053145

TUBE,12.7mm OD x 402.3mm L

1шт.

11

48053146

TUBE,12.7mm OD x 437.8mm L

1шт.

12

48053147

TUBE,12.7mm OD x 366.3mm L

1шт.

13

48053148

TUBE,12.7mm OD x 330.8mm L

1шт.

14

47671728

HYD CONNECTOR,3/8" - 19 BSPP x 3/4" - 16 JIC

4шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

16

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

2шт.

17

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

18

48058525

COUPLING, QUICK, FEM,3/8" Thread x 3/8" NPTF

4шт.

19

86597758

PLUG,29mm OD x 246mm L

Yellow

1шт.

20

86597757

PLUG,29mm OD x 246mm L

Green

1шт.

21

86597754

PLUG,29mm OD x 246mm L

Red

1шт.

22

86597755

PLUG,29mm OD x 246mm L

Blue

1шт.

23

48064615

HOSE,12.7mm ID x 970mm L

2шт.

24

48053150

HOSE,12.7mm ID x 1045mm L

2шт.

25

48067359

HOSE PROTECTION

Sleeve

1шт.

26

263117

CABLE TIE,292.1mm L, Nylon, Black

2шт.
