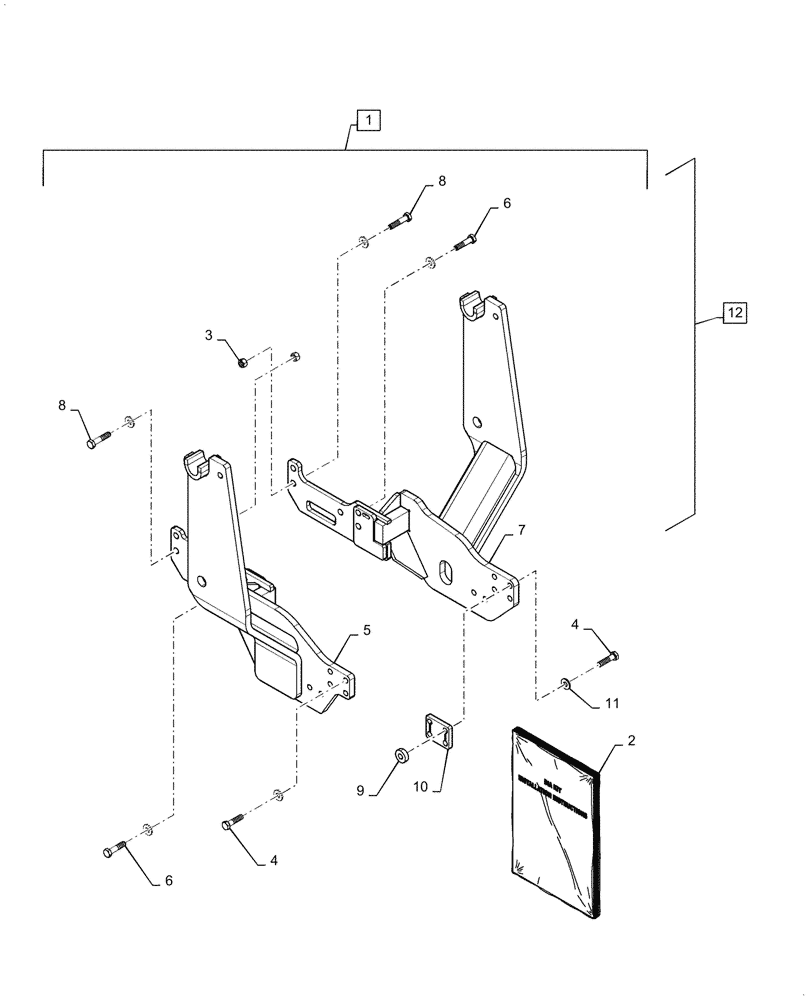

Запчасти Case IH L360A (39.100.020) - VAR - 713696036 - SUBFRAME, MOUNTING PARTS (39) - FRAMES AND BALLASTING

1

47841927

KIT

Loader Mount Assy, Incl 2 - 11

1шт.

2

47943644

INSTRUCTION

Manual

1шт.

3

87331401

NUT,Prev Torque, M14, 2mm Pitch, CL10

4шт.

4

86589011

BOLT,Hex, M14 x 2 x 55mm, Cl 10.9, Full Thd

8шт.

5

47841959

MOUNT

Loader, LH

1шт.

6

15977531

BOLT,Hex, M14 x 1.5 x 60mm, Cl 10.9

7шт.

7

47841933

MOUNT

Loader, RH

1шт.

8

11116531

BOLT,Hex, M14 x 65, 10.9

4шт.

9

47888864

SPACER,16mm ID x 38.1mm OD x 12mm Thk

2шт.

10

47876024

SPACER,72.5mm OD x 88mm L x 12.7mm Thk

1шт.

11

14408

WASHER,0.56" ID x 1.25" OD x 0.13" Thk

19шт.

12

47879417

KIT

Loader Mount, Incl 5, 7

1шт.
