(90.108.020) - MODEL IDENTIFICATION DECAL

Запчасти Case IH L360A (90.108.020) - MODEL IDENTIFICATION DECAL (90) - PLATFORM, CAB, BODYWORK AND DECALS

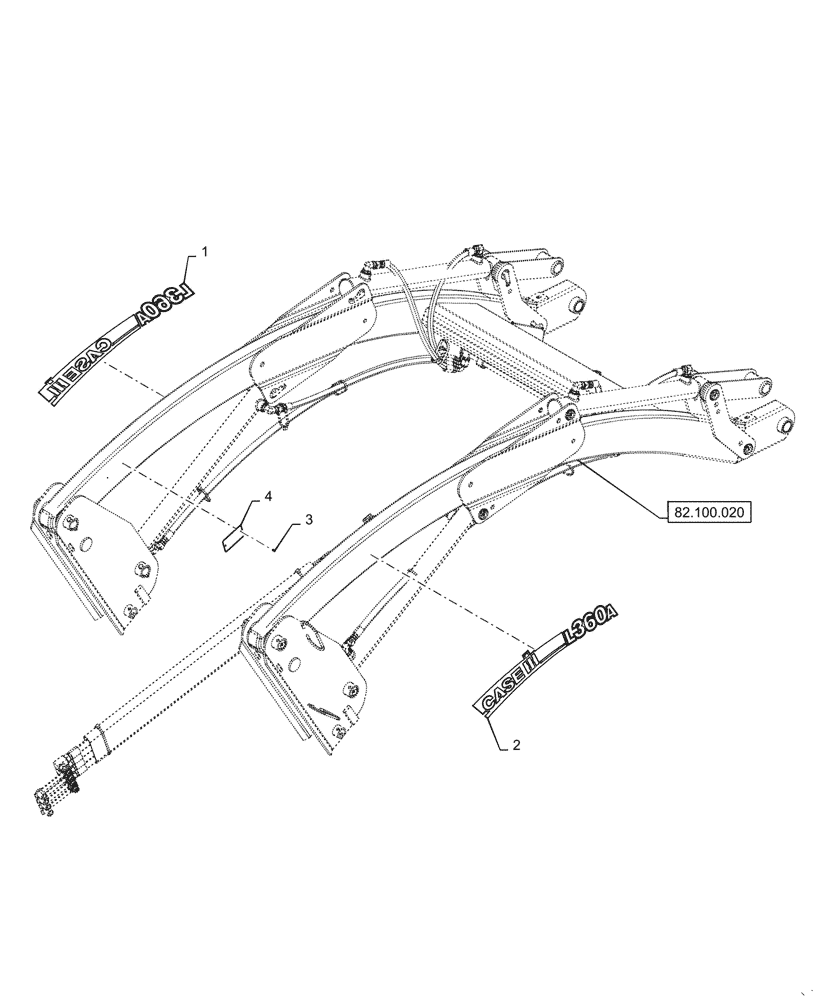

Схема запчастей Case IH L360A - (90.108.020) - MODEL IDENTIFICATION DECAL (90) - PLATFORM, CAB, BODYWORK AND DECALS
82.100.020
2
3
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47595184

DECAL

LH, L360A Stripe

1шт.

2

47595180

DECAL

RH, L360A Stripe

1шт.

3

591875

RIVET,3/32" OD x 11/32" L

Serial Number Plate

2шт.

4

NS

NOT SERVICED

Serial Number Plate

1шт.

Выбрано товаров: 4
