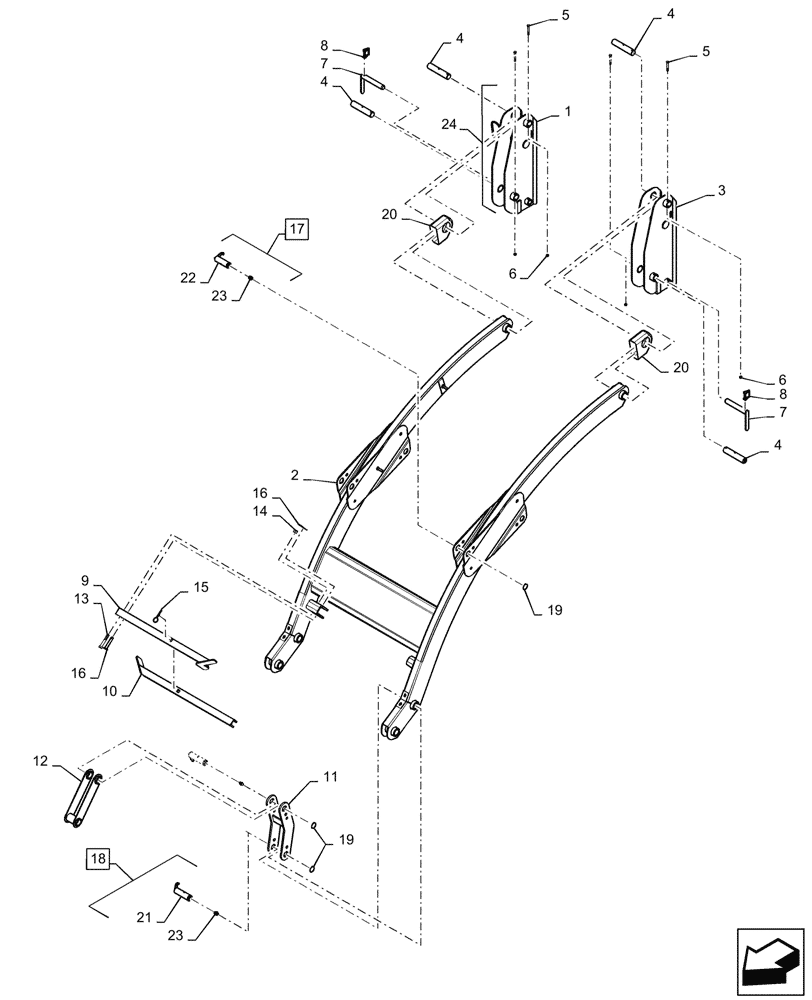

Запчасти Case IH L360A (82.100.020) - LOADER BOOM ARM (82) - FRONT LOADER & BUCKET

1

47557836

TOWER

RH

1шт.

2

47566275

BOOM

Arm

1шт.

3

47557826

TOWER

LH, W/ Decals

1шт.

4

47572463

PIN,31.8mm OD x 157mm L

Tower

4шт.

5

86505972

BOLT,5/16" - 18 x 2 - 1/4", Gr 5

4шт.

6

280736

NUT,5/16"-18, GC

4шт.

7

47407645

PIN,25.4mm OD x 161mm L

Lower, Tower

2шт.

8

86837801

PIN,7.93mm OD x 44.45mm L

Linch, Lower Tower

2шт.

9

87530187

JACK

Stand, RH

1шт.

10

87530184

JACK

Stand, LH

1шт.

11

87584504

BRACKET, SUPPORTING

4 Bar Link

2шт.

12

87531219

LINK

4 Bar

2шт.

13

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

14

88871

NUT,1/2"-13, GC

2шт.

15

80033778

COTTER PIN,11/32" x 3 1/4" x 0.148", CAD or ZNP

Jack Stand

3шт.

16

86980627

PIN,1/2" OD x 2-3/4" L

Jack Stand, RH

2шт.

17

87489777

SPECIAL PIN,31.75mm OD x 97.7mm L

Upper Bucket Lift Cylinder, Incl 22, 23

4шт.

18

87489780

SPECIAL PIN,31.75mm OD x 124.35mm L

Lower 4 Bar Link, Incl 21, 23

4шт.

19

40974

SNAP RING,#125, Ext

8шт.

20

87554959

COVER

Loader Boom

2шт.

21

87593372

PIN,31.75mm OD x 110mm L, W/ Flag

4 Bar Link

1шт.

22

87387019

PIN,31.75mm OD x 90mm L, W/ Flag

Bucket Lift Cylinder

1шт.

23

87414

LUBE NIPPLE,1/4" - 28

2шт.

24

47719442

SERVICE KIT

Tower, Incl 1, 3

1шт.
