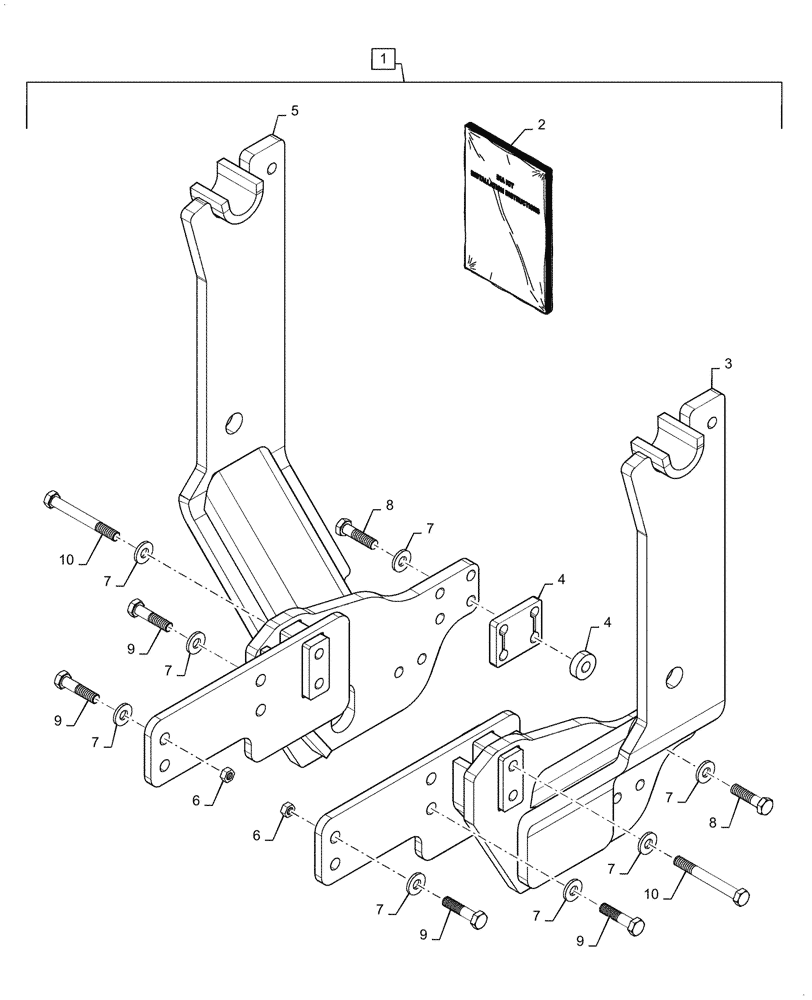

Запчасти Case IH L360A (39.100.060) - VAR - 727102026 - SUBFRAME, MOUNTING PARTS (39) - FRAMES AND BALLASTING

1

48045026

KIT

Loader Mount Assy, Incl 2 - 10

1шт.

2

48011322

INSTRUCTION

Manual

1шт.

3

NSS

NOT SOLD SEPARAT

Loader Mount, LH, Incl in 1

1шт.

4

48049411

SPACER,88mm W x 72.5mm OD x 12.7mm Thk

1шт.

ROPS Only, RH Only

1шт.

4

48000813

SPACER,16mm ID x 38.1mm OD x 12mm Thk

2шт.

CAB Only, RH Only

1шт.

5

NSS

NOT SOLD SEPARAT

Loader Mount, RH, Incl in 1

1шт.

6

86508817

NUT,M14, Cl 8

4шт.

7

12644931

WASHER,14.4mm ID x 32mm OD x 4mm Thk

20шт.

8

86589011

BOLT,Hex, M14 x 2 x 55mm, Cl 10.9, Full Thd

8шт.

9

11116431

BOLT,Hex, M14 x 2 x 60mm, Cl 10.9

8шт.

10

2700505

BOLT,Hex, M14 x 2 x 120mm, Cl 10.9

4шт.
