Запчасти Case IH L360A (35.702.020) - BOOM HYDRAULIC LINES (35) - HYDRAULIC SYSTEMS

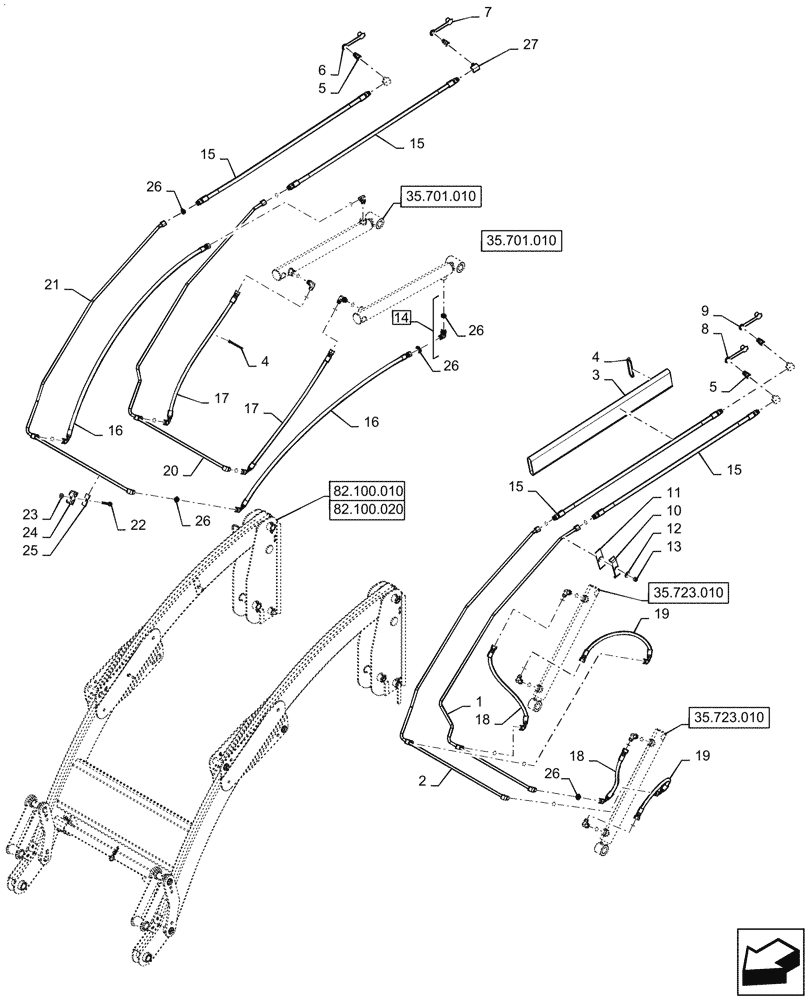

Схема запчастей Case IH L360A - (35.702.020) - BOOM HYDRAULIC LINES (35) - HYDRAULIC SYSTEMS
82.100.010
14
20
4
8
17
17
5
10
15
2
6
16
24
18
15
9
18
7
26
16
26
5
19
12
25
11
1
22
15
27
4
26
26
21
3
13
19
23
15
26
35.723.010
35.723.010
35.701.010
35.701.010
82.100.020

Артикул

Название

Примечание

Количество

1

87536832

HYD TUBE

Bucket Cylinder Base End

1шт.

2

48029248

HYD TUBE

Bucket Cylinder Rod End

1шт.

3

47407014

SLEEVE,120mm OD x 1830mm L

Hose Protector

1шт.

4

323597

CABLE TIE,165mm OAL x 9mm Thk

4шт.

5

9846344

QUICK MALE COUPLING,3/8" NPTF

4шт.

6

86597753

DUST CAP,23mm OD x 255mm L

Yellow

1шт.

7

86597752

DUST CAP,23mm OD x 255mm L

Green

1шт.

8

86597750

DUST CAP,23mm OD x 255mm L

Red

1шт.

9

86597751

DUST CAP,23mm OD x 255mm L

Blue

1шт.

10

86571694

CLAMP

Hydraulic Hose

2шт.

11

765394

PAD,19.8mm ID x 31.8mm W x 101.6mm L

Hose Clamp

2шт.

12

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

13

88902

NUT,3/8"-16

2шт.

14

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 26

8шт.

15

47359984

HYDRAULIC HOSE,12.7mm ID x 2032mm L

4шт.

16

87538057

HOSE ASSY.,9.53mm ID x 711.2mm L, SAE 100R17

Bucket Cylinder Base End

2шт.

17

87538059

HOSE ASSY.,9.53mm ID x 711.2mm L, SAE 100R17

Bucket Cylinder Rod End

2шт.

18

87538085

HOSE ASSY.,0.375" ID x 56" L, SAE 100R17

Lift Cylinder Rod End

2шт.

19

87538086

HOSE ASSY.,0.375" ID x 32" L, SAE 100R17

Lift Cylinder Rod Base

2шт.

20

87536833

HYD TUBE,11.46mm ID x 12.7mm OD x 1240mm L

Lift Cylinder Base End

1шт.

21

87536831

HYD TUBE,11.46mm ID x 12.7mm OD x 1235mm L

Lift Cylinder Rod End

1шт.

22

87497919

SELF-TAP SCREW,1/4” x 1.75” L

4шт.

23

86603118

PUSH-ON NUT,1/2” OD x 5/64” Thk

4шт.

24

625822

CLAMP,1/2" Tube

4шт.

25

86509354

PLATE,9/32" ID x 3/4" W x 2" L

Hose Clamp Securing

4шт.

26

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

16шт.

27

86521965

ELBOW,90 Degree, 3/8"-18 Female x 3/8"-18 Male

4шт.

Выбрано товаров: 27
