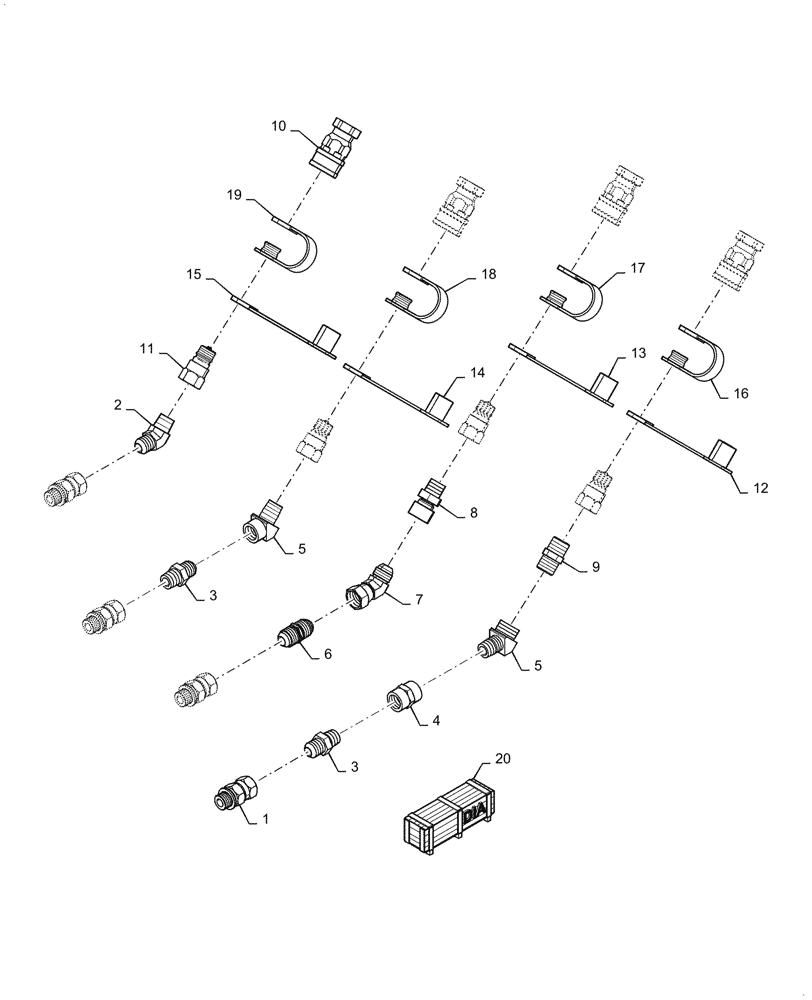

Запчасти Case IH L360A (35.525.020) - MID MOUNT VALVE KIT, HYD CONNECTOR (35) - HYDRAULIC SYSTEMS

1

47671728

HYD CONNECTOR,3/8" - 19 BSPP x 3/4" - 16 JIC

4шт.

2

17387

ELBOW,3/4"-16, Male 37 Degree Fl x 3/8"-18, NPTF

1шт.

3

163334

HYD CONNECTOR,3/4" - 16 JIC x 3/8" - 18 NPT

2шт.

4

217-1102

HYD CONNECTOR,3/8" - 18 NPT x 3/8" - 18 NPT

1шт.

5

217-1087

ELBOW,45 Degree, 3/8"-18 Female x 3/8"-18 Male

2шт.

6

128822

UNION,3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

7

248992

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

8

47566299

TEE,3/4" - 16 x 3/8" - 18 NPTF

1шт.

9

87041527

HYD CONNECTOR,3/8" - 18 NPT x 3/8" - 18 NPT

1шт.

10

48058525

COUPLING, QUICK, FEM,3/8" Thread x 3/8" NPTF

4шт.

11

9846344

QUICK MALE COUPLING,3/8" NPTF

4шт.

12

86597751

DUST CAP,23mm OD x 255mm L

Blue

1шт.

13

86597750

DUST CAP,23mm OD x 255mm L

Red

1шт.

14

86597752

DUST CAP,23mm OD x 255mm L

Green

1шт.

15

86597753

DUST CAP,23mm OD x 255mm L

Yellow

1шт.

16

86597755

PLUG,29mm OD x 246mm L

Blue

1шт.

17

86597754

PLUG,29mm OD x 246mm L

Red

1шт.

18

86597757

PLUG,29mm OD x 246mm L

Green

1шт.

19

86597758

PLUG,29mm OD x 246mm L

Yellow

1шт.

20

48068118

KIT

DIA, MMV Connectors, Incl 1 - 19, Instruction Sheet P/N 48085120

1шт.
