Запчасти Case IH L360 (006) - MID-MOUNT HYDRAULIC CONTROL VALVE KIT, 2-SPOOL W/ROPS - 710440046

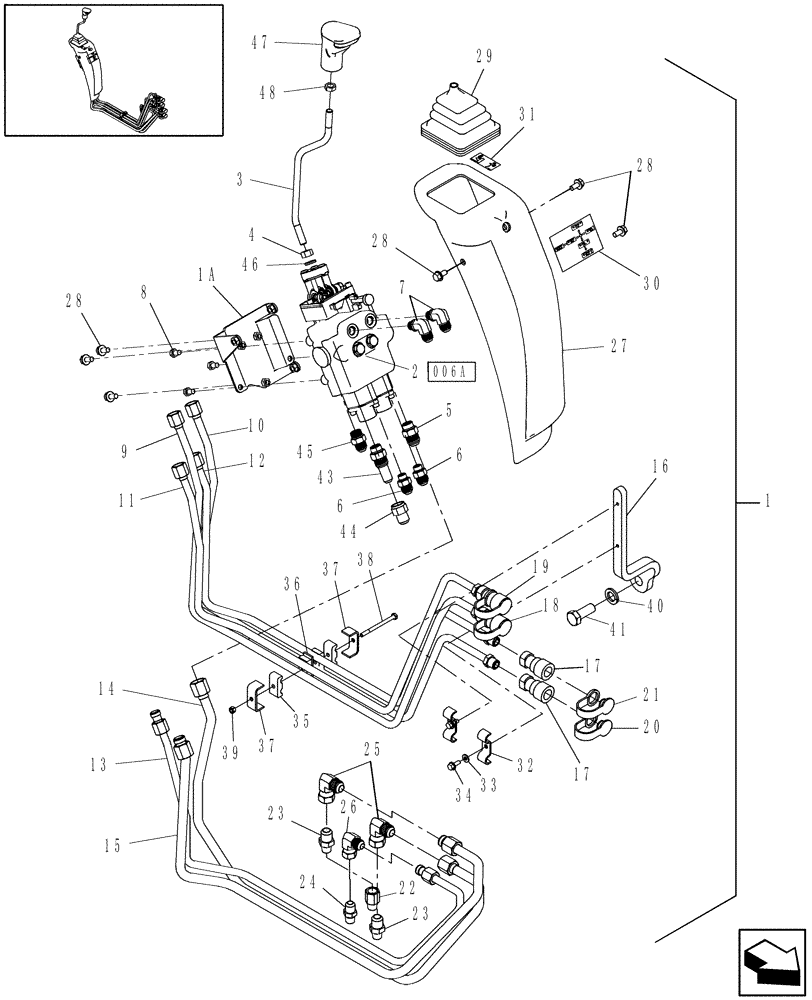

Схема запчастей Case IH L360 - (006) - MID-MOUNT HYDRAULIC CONTROL VALVE KIT, 2-SPOOL W/ROPS - 710440046
5
13
15
38
9
32
39
17
37
23
6
26
28
4
28
47
29
16
1a
24
22
17
41
28
6
45
21
44
34
43
31
19
35
2
25
36
7
3
11
006a
48
12
37
33
20
1
40
10
8
14
23
18
30
46
27

Артикул

Название

Примечание

Количество

1

710440046

DIA KIT, TRACTOR

Includes: Ref. 1A-48

1шт.

1a

86404401

BRACKET

Valve Mount

1шт.

2

87571203

HYDRAULIC VALVE

Hydraulic Valve

1шт.

3

87495969

HANDLE

Loader Valve

1шт.

4

50456

NUT,7/16"-20, G5

M5

1шт.

5

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

Includes: 128825 O-Ring

1шт.

6

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Includes:9617873 O-Ring

2шт.

7

86512938

90 ELBOW,90 Degree, 37 Degree 3/4"-16 x 9/16"-18 ORB

Includes: 9617873 O-Ring

2шт.

8

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

3шт.

9

86404405

TUBE,12.70 mm OD

Port A1

1шт.

10

86404407

TUBE,12.70 mm OD

Port A2

1шт.

11

86404409

TUBE,12.70 mm OD

Port B1

1шт.

12

86404411

TUBE,12.70 mm OD

Port B2

1шт.

13

87300892

HYD TUBE,12.70 mm OD

Tank

1шт.

14

86404415

TUBE,15.88 mm OD

Pressure

1шт.

15

87300891

HYD TUBE,15.88 mm OD

Power Beyond

1шт.

16

86402201

BRACKET

Tube Mount

1шт.

17

9846343

COUPLING,3/8" NPTF

Hydraulic, Female, O-Ring used is 122056 & Back-Up Ring used is 647327

4шт.

18

86597755

PLUG,29mm OD x 246mm L

Dust, Blue

1шт.

19

86597754

PLUG,29mm OD x 246mm L

Dust, Red

1шт.

20

86597758

PLUG,29mm OD x 246mm L

Dust, Yellow

1шт.

21

86597757

PLUG,29mm OD x 246mm L

Dust, Green

1шт.

22

86636626

ADAPTER,3/8"-18 Male NPTF x 3/8"-18 Female NPTF

1шт.

23

242679

HYD CONNECTOR,7/8" - 14 JIC x 3/8" - 18 NPT

2шт.

24

163334

HYD CONNECTOR,3/4" - 16 JIC x 3/8" - 18 NPT

1шт.

25

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

2шт.

26

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

1шт.

27

86404403

PROTECTIVE COVER

Loader Control

1шт.

28

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

, Serial Range: -29

6шт.

29

86530982

BOOT

Loader Joystick

1шт.

30

86401095

DECAL

Loader Valve

1шт.

31

86401119

DECAL

Valve Lock

1шт.

32

86524859

CLAMP

Tube

2шт.

33

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

34

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

2шт.

35

430357

CLAMP

4шт.

36

434097

SUPPORT

1шт.

37

431941

SUPPORT

2шт.

38

86508570

BOLT,Hex, M6 x 80mm OAL, Cl 8.8

1шт.

39

353308

NUT,M6 x 1.0, Cl 8

1шт.

40

300520

LOCK WASHER,M18

1шт.

41

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

1шт.

43

9601710

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, Pipe

1шт.

44

87039394

REDUCER,37 Degree, 3/4"-16, Fem x 7/8"-14 Male

Adapter

1шт.

45

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

46

81547

LOCK WASHER,7/16"

1шт.

47

87543390

HANDLE GRIP

Knob, Joystick

1шт.

48

87891

BHD LOCK NUT,Jam, 7/16"-20, G2

1шт.

Выбрано товаров: 48
