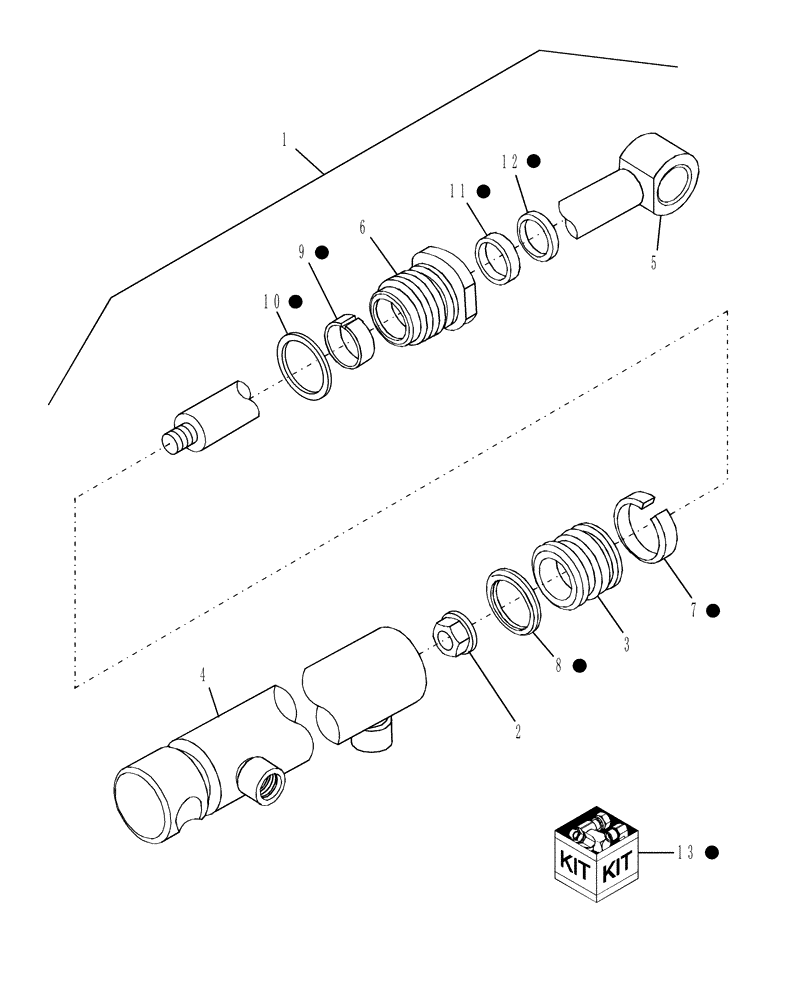

Запчасти Case IH L360 (004) - LIFT CYLINDER

1

87516575

CYLINDER,Double Acting, 34.92mm Rod, 527mm Stroke

Lift

1шт.

Manufacturer's Production Date Stamp Located Middle of Cylinder Tube.Stamp Includes Date Code ( week / year ).

1шт.

2

280724

LOCK NUT,3/4" - 16

1шт.

3

87038286

PISTON ASSY

1шт.

4

NSS

NOT SOLD SEPARAT

1шт.

5

87038299

ROD

1шт.

6

87038303

HEAD ASSY.

1шт.

7

NSS

NOT SOLD SEPARAT

Guide Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Piston Seal

1шт.

9

NSS

NOT SOLD SEPARAT

Guide Ring

1шт.

10

NSS

NOT SOLD SEPARAT

Dual Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Rod Seal

1шт.

12

NSS

NOT SOLD SEPARAT

Wiper Seal

1шт.

13

87038297

SEAL KIT

1шт.
